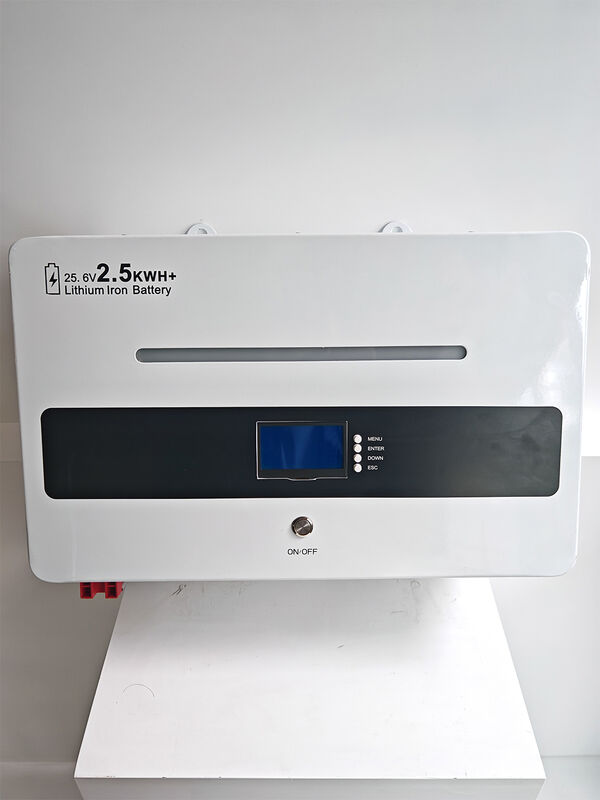

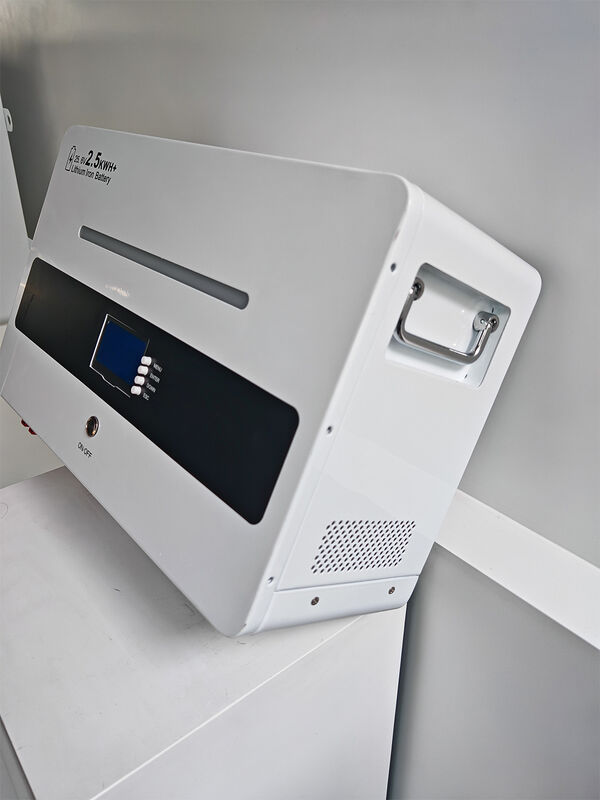

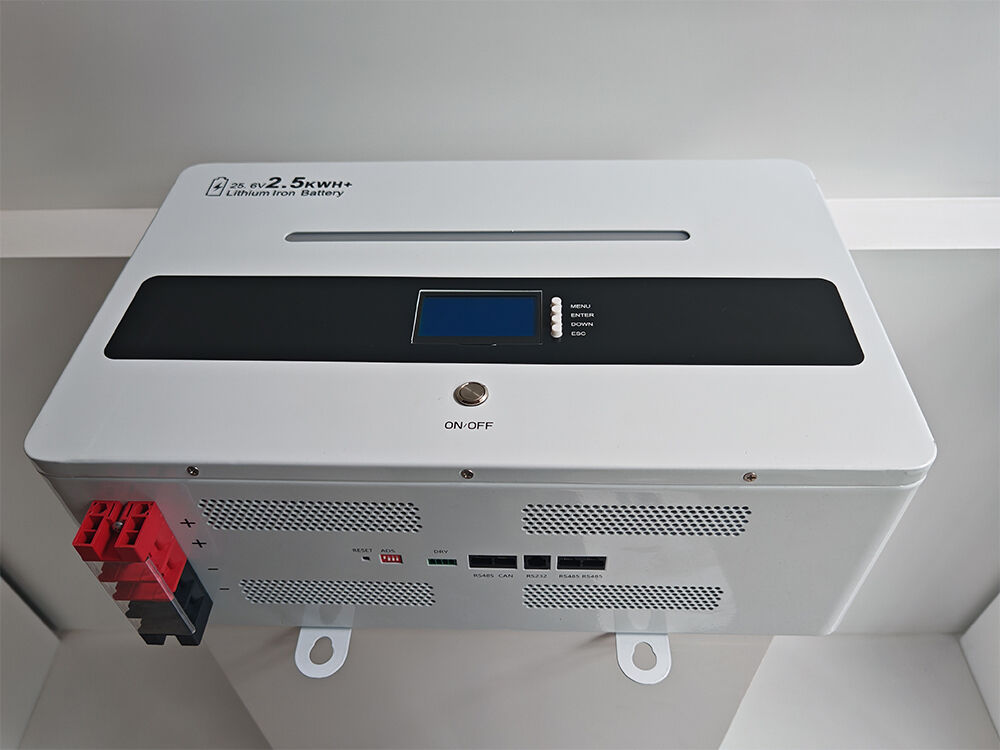

25.6V 100Ah Wall Mounted Energy Storage Power Supply Untuk Instalasi Menghemat Ruang
| Model: | H01 | Battery Type: | LiFePO₄ |
| Nominal Voltage: | 25.6v | Nominal Capacity: | 100Ah |
| Capacity: | 2.56KWH | Communication Ports: | RS485+BISA+RS232 |
| Charge Current: | 100A | Discharge Current: | 100A |
| Gross Weight: | 31kg | ||
| High Light: | 25.6V 100Ah Power Supply penyimpanan energi,Menyimpan Ruang Energi Penyimpanan Pasokan Listrik,2.56kWh penyimpanan baterai perumahan |
||
Home Energy Storage Wall-Mounted Series (Model H01) adalah sistem baterai LiFePO4 berkinerja tinggi yang dirancang untuk aplikasi penyimpanan energi surya off-grid yang dapat diandalkan.Kapasitas 56kWh dan konstruksi yang kuat, menyediakan pasokan listrik yang stabil dalam berbagai kondisi lingkungan.
| Parameter | Nilai |
|---|---|
| Jenis Baterai | LiFePO4 |
| Tegangan Nominal | 25.6V |
| Kapasitas Nominal | 100Ah (2,56kWh) |
| arus muatan/pengurangan | 100A |
| Jangkauan tegangan | Pengisian: 29.2V, Pelepasan: 22.4V |

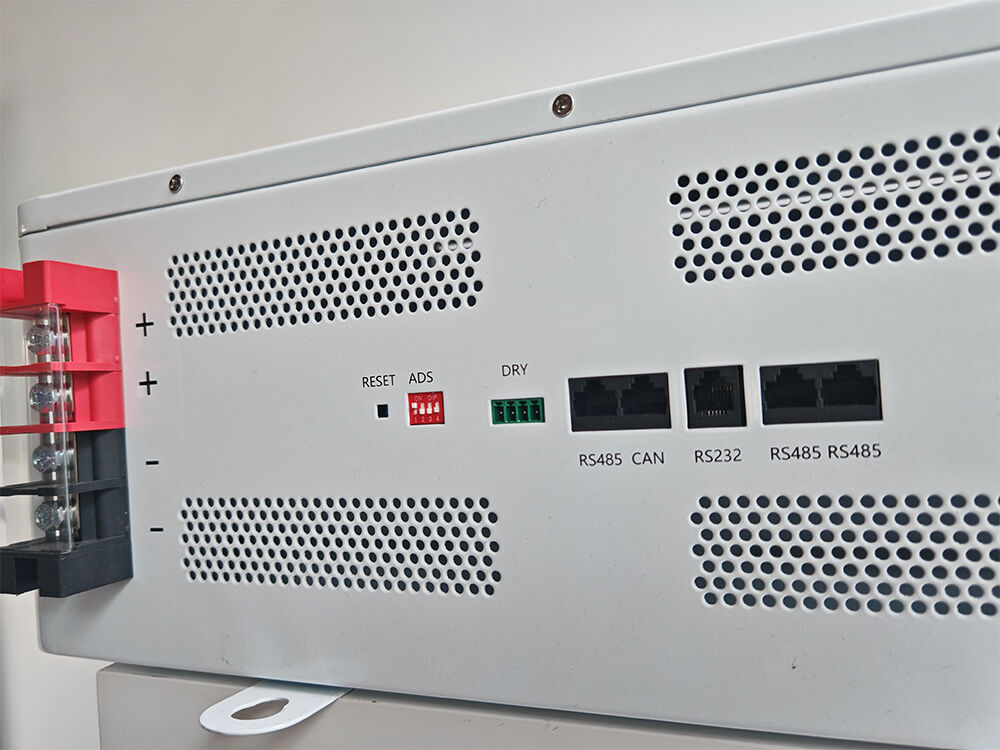

| Pelabuhan Komunikasi | RS485 + CAN + RS232 |
| Protokol Komunikasi | Kompatibel dengan beberapa protokol inverter arus utama |
| Dimensi (H*W*D) | 485 * 300 * 179mm (Lapisan) 562 * 372 * 293mm (Pengemasan) |
| Kisaran suhu | Pengisian: 0°C~45°C Pengeluaran: -20°C~55°C Penyimpanan: -10°C~45°C |
| Berat badan | Net: 27kg, Bruto: 31kg |
- Desain yang dipasang di dindinguntuk instalasi hemat ruang
- Baterai LiFePO4 kapasitas tinggidengan umur siklus panjang
- Kisaran suhu operasi yang luasuntuk kinerja yang dapat diandalkan dalam berbagai iklim
- Antarmuka komunikasi gandauntuk integrasi sistem
- Ukuran kompakdengan kemasan yang efisien
