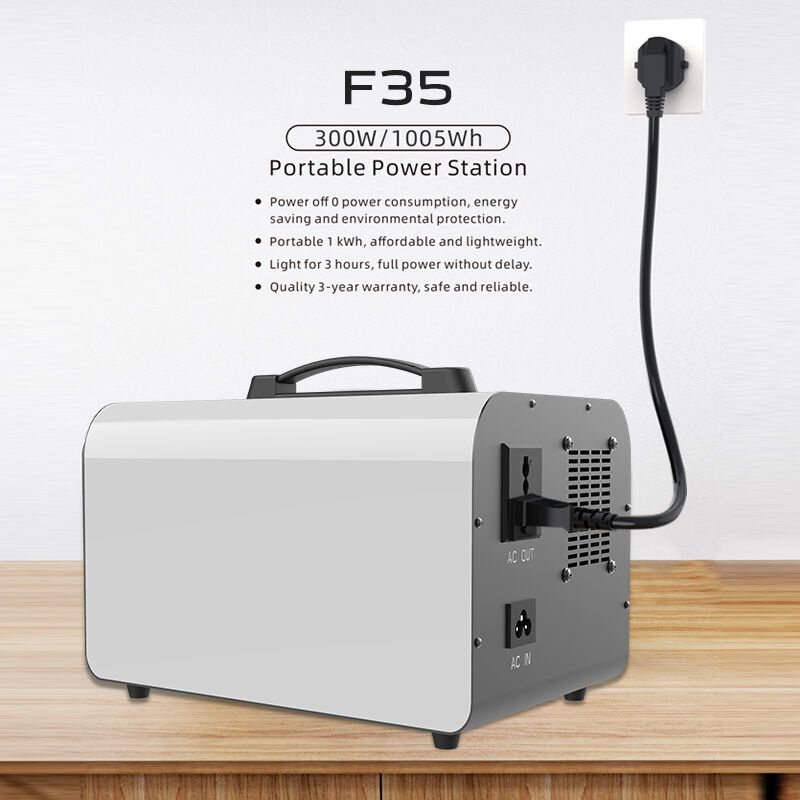

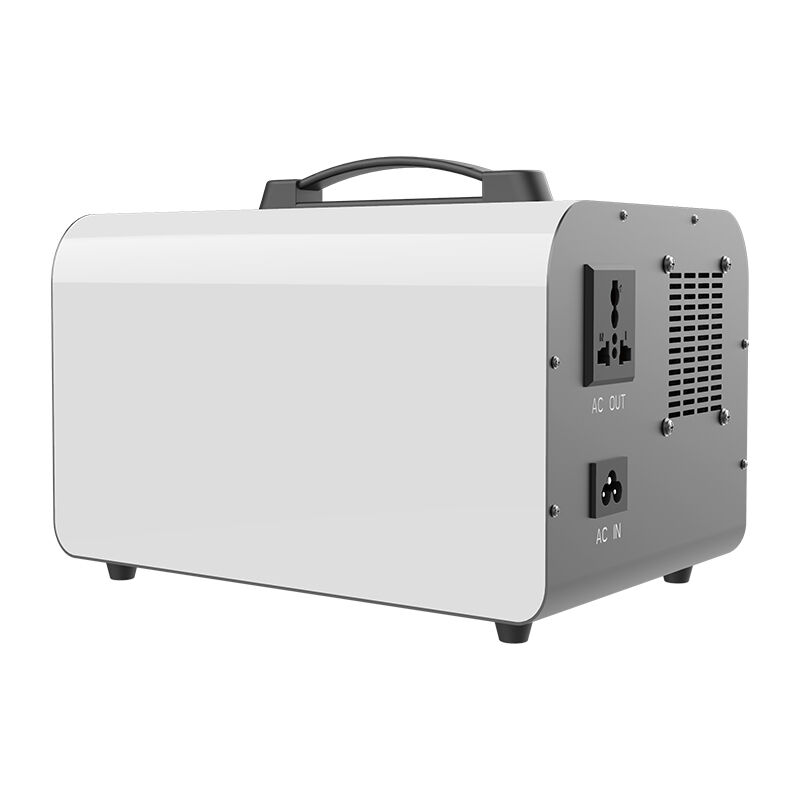

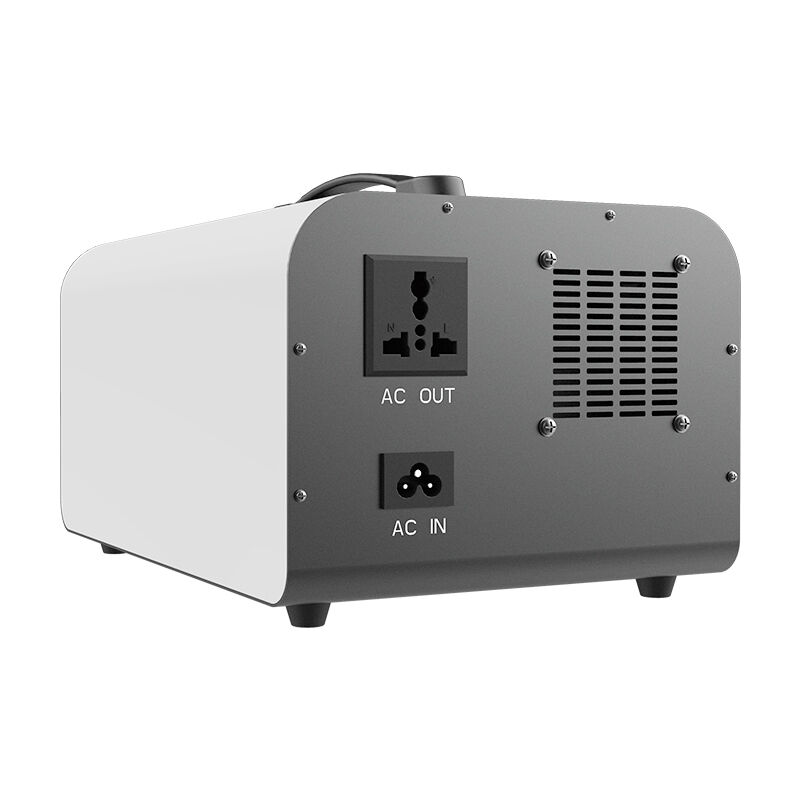

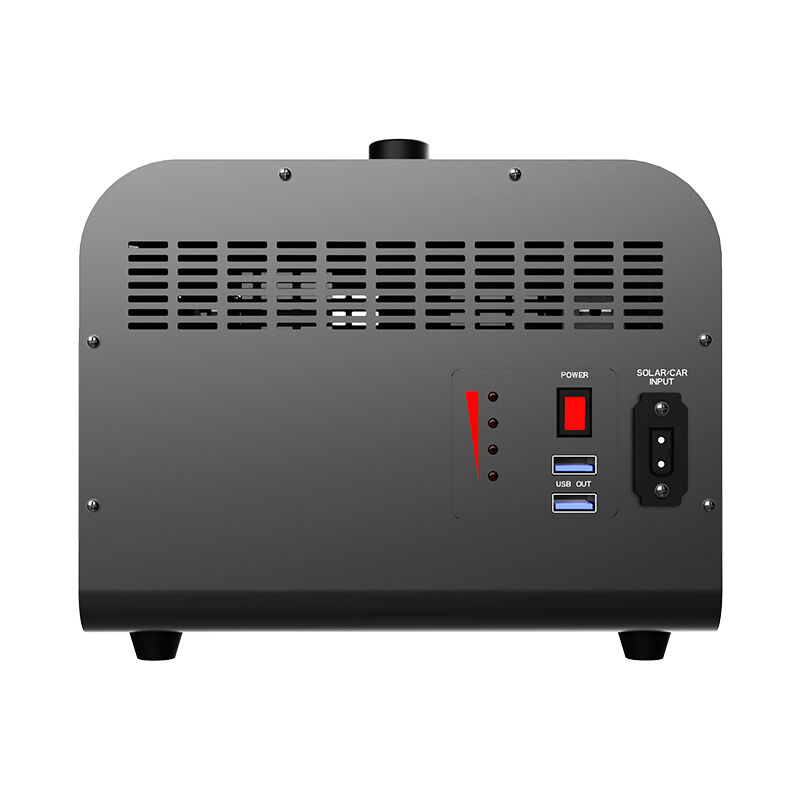

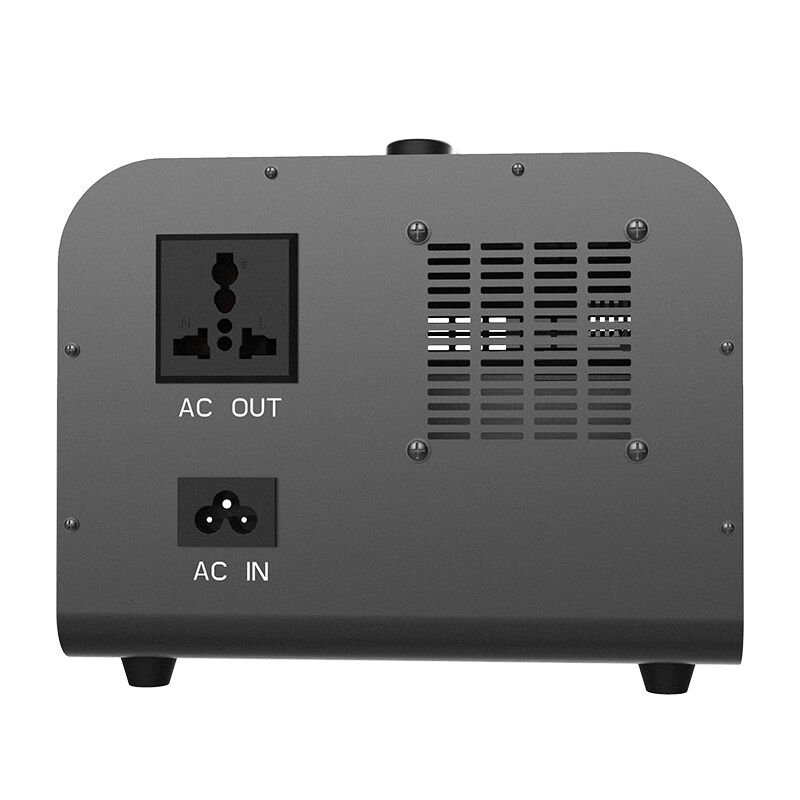

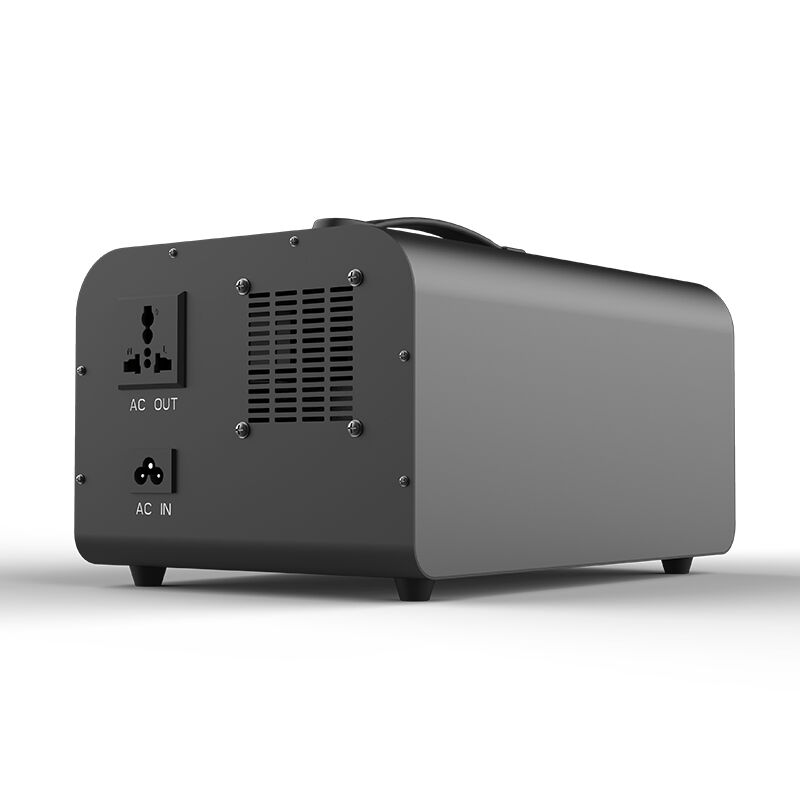

300W Portable Power Supply With LiFePO4 Battery And MPPT Controller For Solar Charging
Basic Properties
Place of Origin:
Guangdong, China
Brand Name:
ShunXiang
Certification:
CE/FCC/RoHS/MSDS/UN38.3
Model Number:
F35
Trading Properties
Minimum Order Quantity:
100
Payment Terms:
T/T
Supply Ability:
1000pcs/month
Specifications
| Power Source: | Solar Panel, AC Adaptor | Battery Type: | LiFePO4 |
| Inverter Type: | Pure Sine Wave | Controller Type: | MPPT |
| Special Features: | USB*2, PV Input, Car Input | Product name: | Portable Solar Power Station |
| Function: | Power Support Camping | Application: | Emergency Power Backup |
| Weight: | 9.5 Kg | Size: | 294*130*217 Mm |
| OEM/ODM: | Accepatable | AC output: | 220V50Hz/ 110V60HZ |
| Usage: | Outdoor Portable Mobile Emergency Power | Type: | USB Universal |
| System Voltage: | 220V | ||
| High Light: | 300W Portable Power Supply,LiFePO4 Battery Portable Power Supply,MPPT 300 watt portable power station |
||
Product Description
Portable 300W 1005WH USB Power Station
Model & Construction
Model Number: F35
Construction: Metal spraying
Construction: Metal spraying
Physical Specifications
Weight: 9.5 kg
Dimensions: 294mm × 130mm × 217mm (L×W×H)
Dimensions: 294mm × 130mm × 217mm (L×W×H)
Core Technical Parameters
| Battery Materials | LiFePO4 (Lithium Iron Phosphate) |
| Rated Capacity | 1005Wh (896Wh selectable) |
| Cell Life Cycle | 3000 cycles at 80% State of Charge |
| USB Ports | 2 × 5V/3A |
| UPS Switchover Time | <100ms |
Operating Environment
| Operating Noise | ≤55dB |
| Operating Temperature | -10°C to +40°C (Refer to derating curve) |
| Operating Humidity | 20% to 90% RH, non-condensing |
| Storage Temperature/Humidity | -20°C to +65°C, 10-95% RH |
Product Performance Specifications
| Power Rating | 300W |
| Utility Input Voltage/Frequency | 100-240V, 50/60Hz |
| PV Input Voltage/Max Charging Power | 12-50V, 300W Maximum |
| Maximum Inverter Output/Waveform | 300W Maximum / Pure Sine Wave |
| AC Outlet | Global specifications compatible |
| AC Charging Power | 250W Maximum |
| Battery Indicator | 5 LED status display |
Certification & Compliance
Complies with global safety and performance certifications
Comprehensive Protection Mechanisms
Input Overvoltage Protection
Input Undervoltage Protection
Output Overvoltage Protection
Output Overload Protection
Output Undervoltage Protection
Output Overcurrent Protection
Short Circuit Protection
Overtemperature Protection
Battery Overvoltage Protection
Battery Low Voltage Protection
Battery Charging Overcurrent Protection
Battery Charging Short Circuit Protection
Battery Discharge Overcurrent Protection
Battery Discharge Short Circuit Protection
Battery High/Low Temperature Protection
