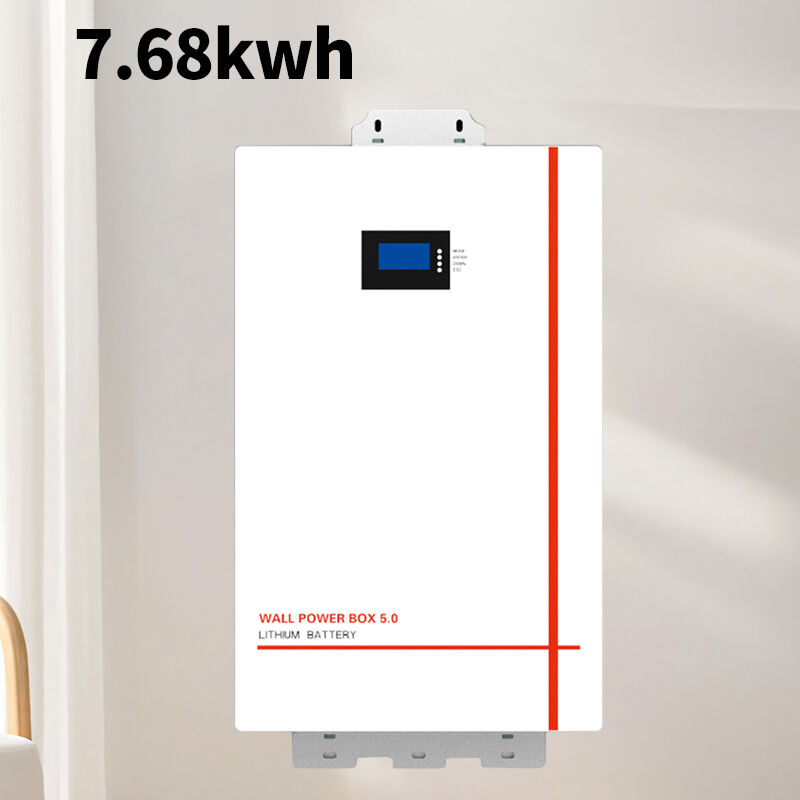

7.68 KWh Home Energy Storage System 51.2V 150Ah LiFePO4 Residential Battery Storage
| Model: | HO3-3 | Battery Type: | LiFePO₄ |
| Nominal Voltage: | 51.2V | Nominal Capacity: | 150Ah |
| Capacity: | 7.68kWh | Dimensions: | Length 790*Width 496.4*Height 201.2mm |
| Gross weight: | 92kg | ||
| High Light: | 7.68 kWh Home Energy Storage System,150Ah Home Energy Storage System,LiFePO4 residential battery storage |
||

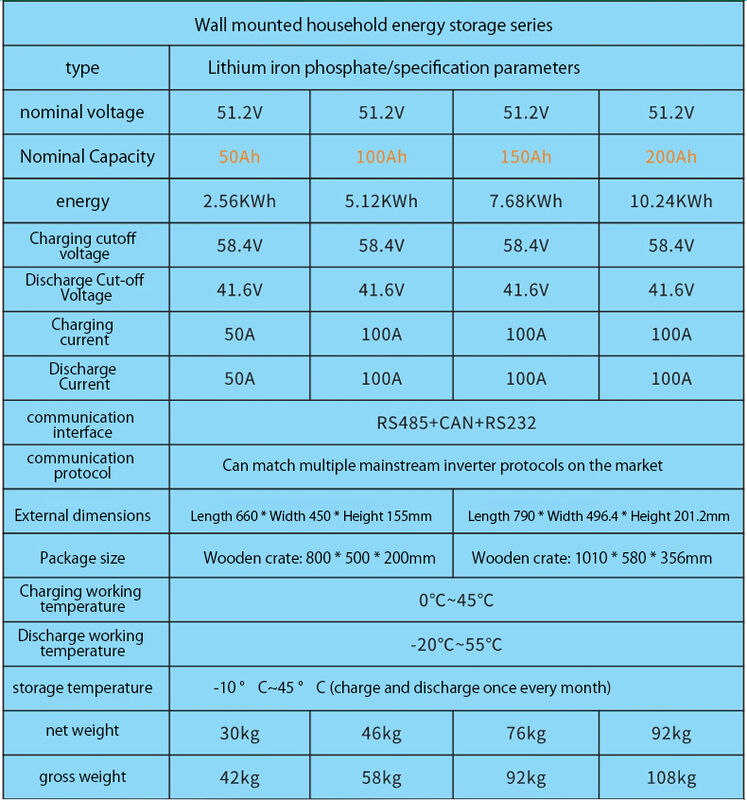

| Model | HO3-3 |
|---|---|
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 150Ah |
| Total Energy Capacity | 7.68kWh |
| Charge/Discharge Current | 100A |
| Voltage Range | 41.6V (discharge) - 58.4V (charge) |
|---|---|

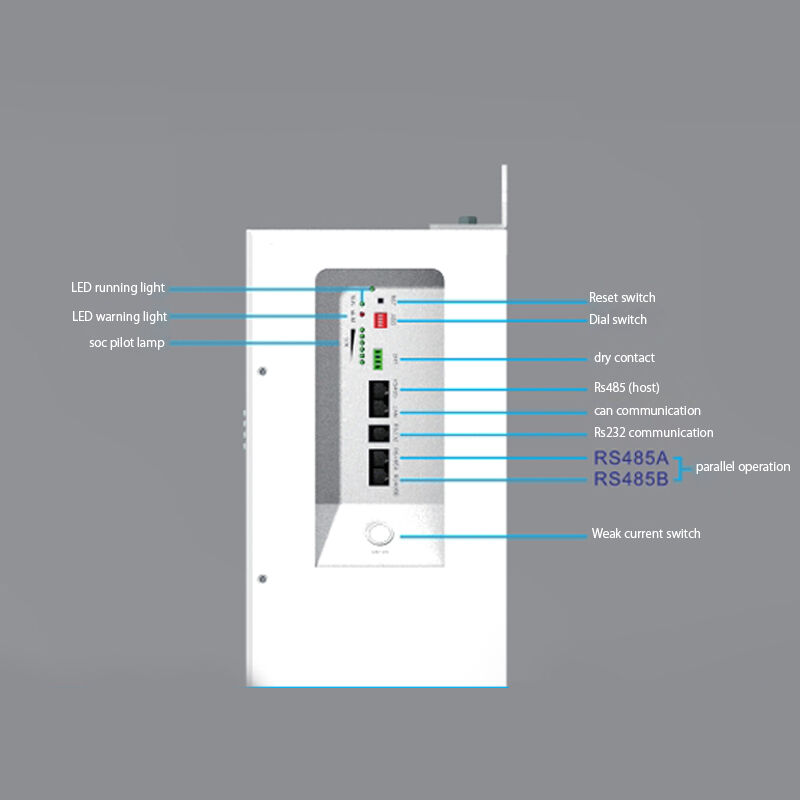

| Communication Interfaces | RS485 + CAN + RS232 |
| Protocol Compatibility | Multiple mainstream inverter protocols |
| Operating Temperatures |
Charging: 0℃ to 45℃
Discharging: -20℃ to 55℃
|
| Storage Temperature | -10℃ to 45℃ (charge/discharge once monthly) |
| Unit Dimensions (L*W*H) | 790 * 496.4 * 201.2 mm |
|---|---|
| Packaging Dimensions | 1010 * 580 * 356 mm (wooden crate) |
| Weight |
Net: 76kg
Gross: 92kg
|
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Solar Generator with 10200W BMS Dual PV Input Home Energy Storage System Key Features 15kWh Massive Capacity & 6500 Cycles - LiFePO4 battery (51.2V 280Ah) provides reliable 24/7 home power with ultra-long lifespan (6500 cycles) Solar-Ready with 6500W PV Input - Built-in 120A MPPT solar charger (max 6500W input, 60-500VDC) for efficient green energy storage 9-in-1 Smart BMS Protection - Comprehensive monitoring including over-voltage, short circuit, temperature, and
Wall Mounted Home Energy Storage System 220V Household Solar Battery For 6 Parallel Machines
Wall-Mounted 10 kWh with DMS Home Energy Storage Power Supply 1.1kW BMS UPS Solar System for 6 Parallel Machines Pure Sine Wave Battery Specifications Name LiFePO4 Battery Module Battery/Cell Classification Li-ion Battery Normal Voltage 51.2V Rated Capacity 200Ah Watt-hour rating 10240Wh Appearance Approximate Silver Cuboid Mass 92Kg Li Content N/A Internal cell combination mode 16S1P Limited Charge Voltage 58.4V Discharge Cut-Off Voltage 40V Charge Current 60A Max.
20kWh 110V Home Battery Storage System With 300Ah LiFePO4 Battery Module
High Frequency 15kWh-20kWh Pure Sine Wave Power Supply for Home Energy Storage MPPT BMS Communication Variety Floor-Standing Product Specifications Name LiFePO4 Battery Module Battery/Cell Classification Li-ion Battery Normal Voltage 51.2V Rated Capacity: 300Ah Watt-hour rating 15360Wh Appearance: Approximate Silver Cuboid Mass 126.18Kg Li Content: N/A Internal cell combination mode 16S1P Limited Charge Voltage 58.4V Discharge Cut-Off Voltage: 40V Charge Current 60A Max.
51.2V 5kW Home Energy Storage System IP54 Solar Hybrid Residential Battery Storage
W93 Wall-Mounted Home Energy Storage System 10kWh 5500W High Frequency Pure Sine Wave BMS Multiple UPS Solar Generator Key Features 10kWh High Density + 6500 Cycles - Compact LiFePO4 battery (51.2V 200Ah) delivers reliable power for 24/7 home use with industry-leading 6500-cycle lifespan at 80% DoD Space-Saving Wall Design - Ultra-slim 180mm profile (796*485mm) saves floor space with UN-certified cardboard packaging ensuring damage-free shipping (Net 85kg) Solar Hybrid + Grid
