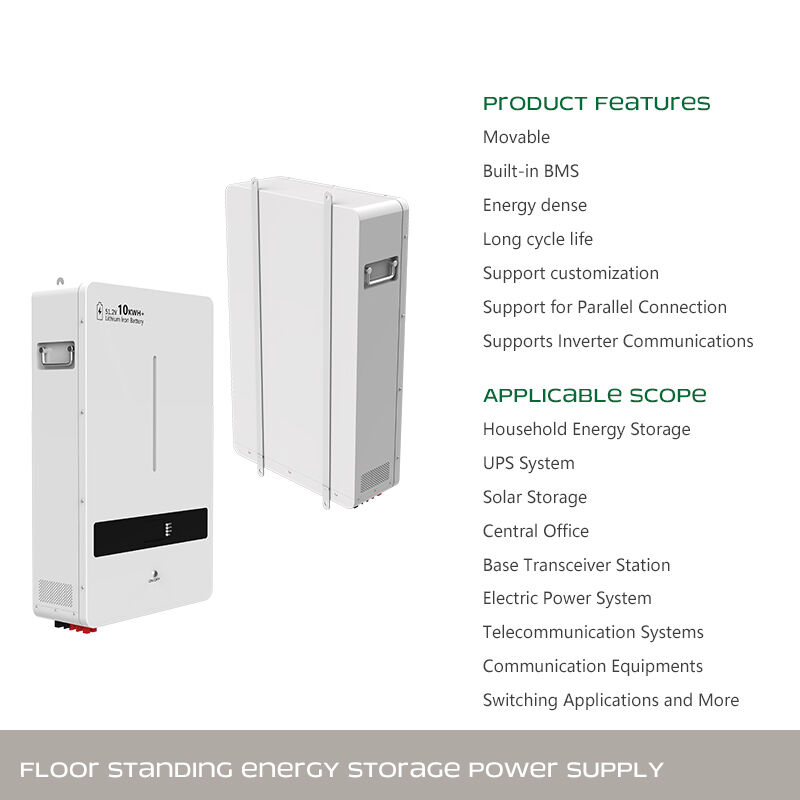

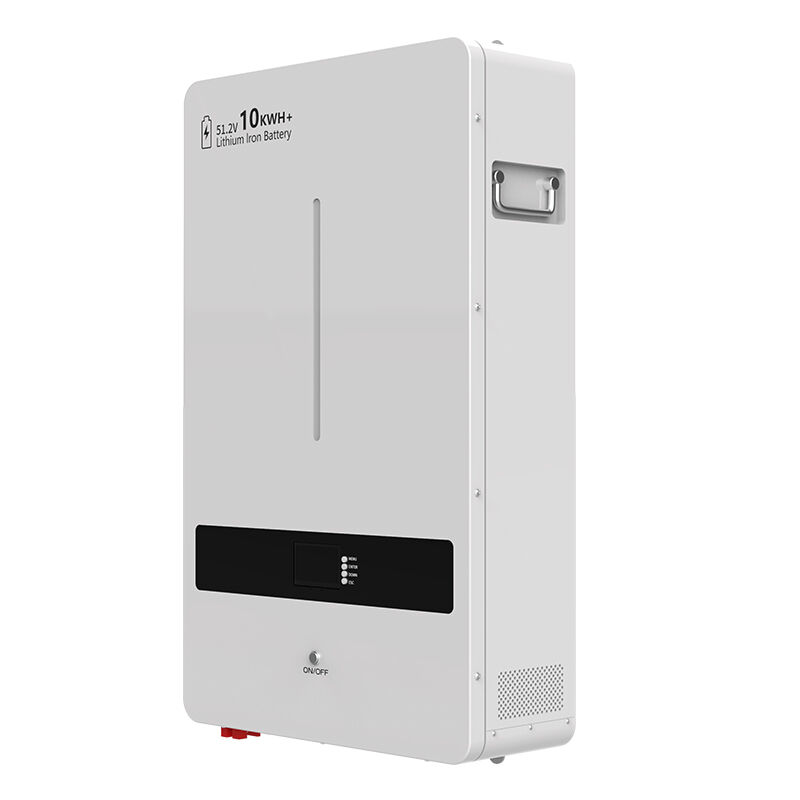

51.2V 5kW Home Energy Storage System IP54 Solar Hybrid Residential Battery Storage

51.2V Home Energy Storage System

IP54 Home Energy Storage System

Solar Hybrid residential battery storage

Place of Origin:

Guangdong, China

Brand Name:

Shunxiang

Certification:

CE,ROSH,FCC,UN38.3,MSDS

Model Number:

W93

Chat Now

Request A Quote

Product Details

Battery Type:

LiFePO4

System Voltage:

51.2 V

Output Power Range:

5-10kW

Dimension (L*W*H):

900*535*360mm

Weight:

92kg

System Type:

Wall-Mounted, Stackable, Rack-mounted

Type:

Split

Communication Port:

CAN, RS-232, Rs485

Protection Class:

IP54

Grid Connection:

Off Grid, Hybrid Grid

Port:

ADS/ DRY/RS485 CAN/ RS232

OEM/ODM:

Accepatable

Operating Temperature:

-20°C ~70°C

Highlight:

51.2V Home Energy Storage System

IP54 Home Energy Storage System

Solar Hybrid residential battery storage

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Wooden crate

Delivery Time

18-20 work days

Payment Terms

T/T

Supply Ability

1000pcs/month

Compact 2.56kWh Solar Power Battery Systems Easy Maintenance Safety Operation

Chat Now

video

Wall Mounted Residential Solar Energy Storage System With 5.12kWh LiFePO4 Battery

Chat Now

video

10.24kWh 51.2V 200Ah LiFePO4 Energy Storage Battery For Home Solar Systems

Chat Now

video

Wall Mounted Home Energy Storage System 220V Household Solar Battery For 6 Parallel Machines

Chat Now

18658046918

eason@shunxiangenergy.com

86--18658046918

Chat Now

Product Description

W93 Wall-Mounted Home Energy Storage System 10kWh 5500W High Frequency Pure Sine Wave BMS Multiple UPS Solar Generator

Key Features

10kWh High Density + 6500 Cycles - Compact LiFePO4 battery (51.2V 200Ah) delivers reliable power for 24/7 home use with industry-leading 6500-cycle lifespan at 80% DoD

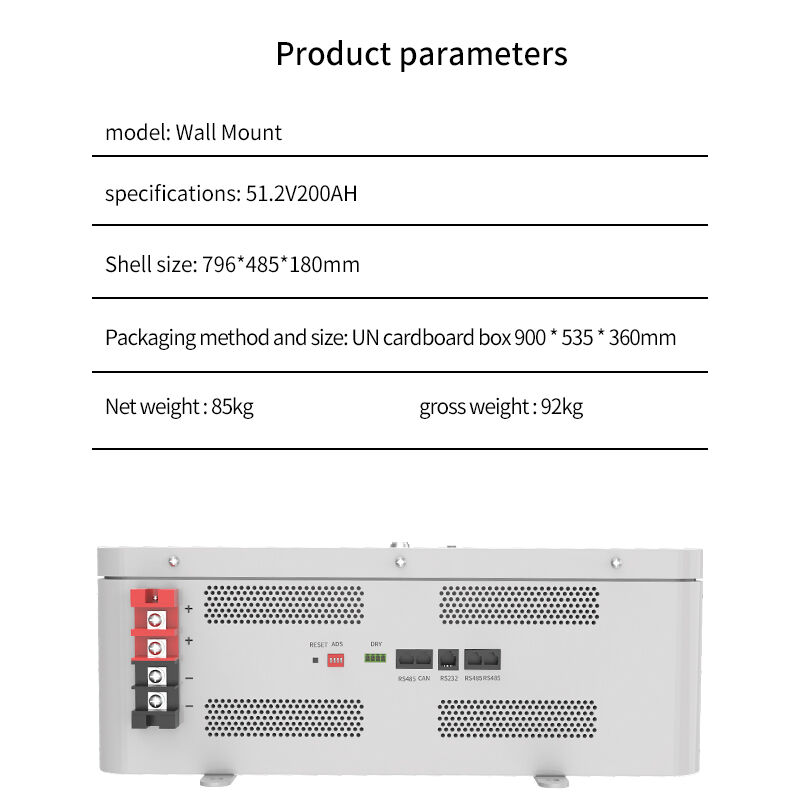

Space-Saving Wall Design - Ultra-slim 180mm profile (796*485mm) saves floor space with UN-certified cardboard packaging ensuring damage-free shipping (Net 85kg)

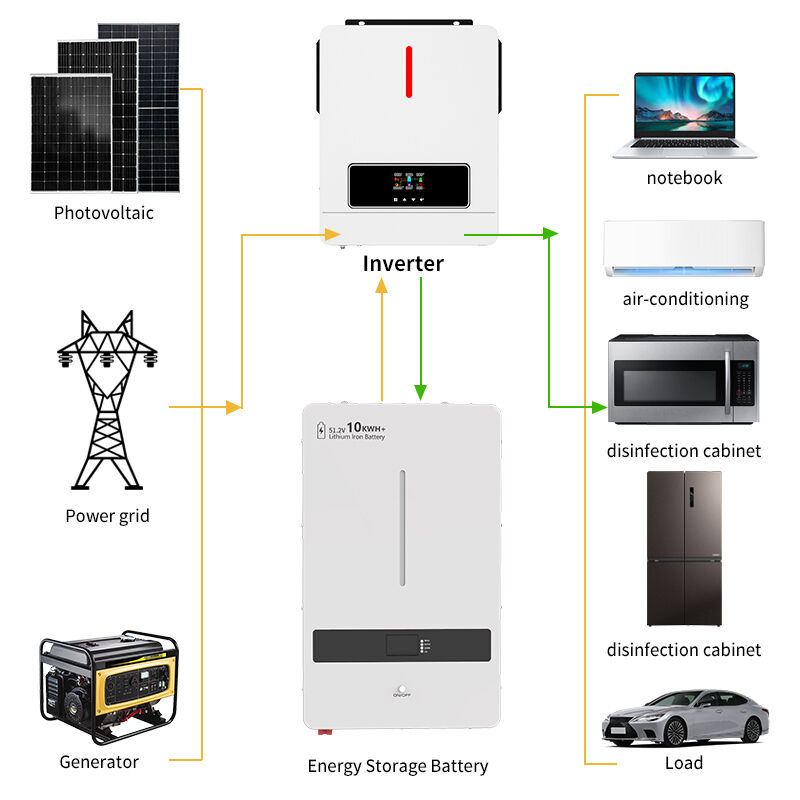

Solar Hybrid + Grid Backup - Seamlessly integrates with photovoltaic panels, generators, and grid power with inverter communication for on/off-grid switching
9-Layer BMS Safety System - Protects against overcharge, short circuit, reverse current, and temperature extremes for safe operation with sensitive devices
Whole-House Power Coverage - Runs air conditioners (900W), dishwashers (600W), coffee makers (400W), EV chargers, and lighting (15-30W) during outages

Technical Specifications

MODEL	VICTOR NM-ECO-3.6KW PLUS	VICTOR NM-ECO-4.2KW PLUS	VICTOR NM-ECO-6.2KW PLUS
Phase	1-phase	1-phase	1-phase
Maximum PV Input Power	6200W	6500W	6200W
Rated Output Power	3600W/3600VA	4200W/4200VA	6200W/6200VA
Maximum Solar Charging Current	120A	80A	120A
Nominal DC Voltage/Maximum DC Voltage	360/500VDC	360/500VDC	360/500VDC
MPPT Voltage Range	60~450VDC	60~450VDC	60~450VDC
Output Wave Form	Pure sine wave
Maximum Conversion Efficiency(DC/AC)	98%
Operating Temperature	-10℃-50℃

Advanced Features

Pure sine wave solar inverter (on/off Grid) with output power factor 1.0
WiFi & GPRS available for iOS and Android devices
Inverter can run without battery with one-key restoration to factory settings
Built-in Lithium battery automatic activation and dual communication ports
Built-in 120A MPPT Solar charge: max 6200W (for 3.6KW/4.2KW), max 6500W (for 6.2KW)
High PV input voltage range (60-500VDC) with built-in anti-dust kit for harsh environments
Smart battery charge design to optimize battery life with dual output capability
