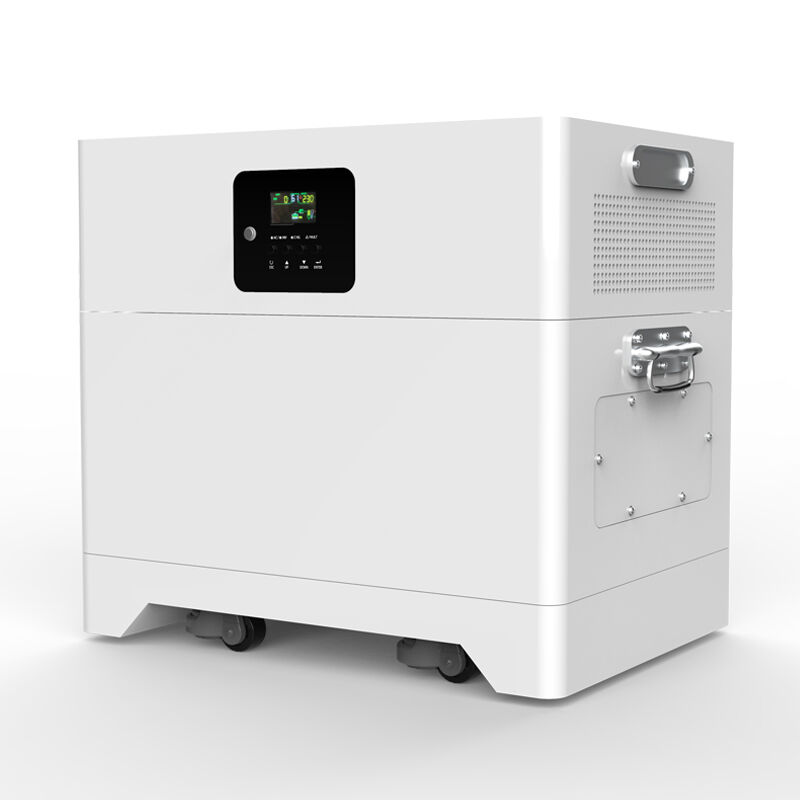

Name: 5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging
Brand: Dongguan ShunXiang Energy Technology Co.,Ltd
SKU: F48200
Availability: InStock

Home > Products > Home Energy Storage System >

5kW AC Output Residential Solar Battery Storage 10kWh With 3400W MPPT Charging

5kW residential solar battery storage

AC Output residential solar battery storage

10kWh solar backup battery for home

Place of Origin:

China

Brand Name:

shunxiang

Certification:

CE,ROSH,FCC,UN38.3

Model Number:

F48200

Chat Now

Request A Quote

Product Details

Rated Power:

5000W

Capacity:

10kWh

Cut-off Charging Voltage:

54.8V

Cut-off Discharging Voltage:

41.6V

Rated Charging Current:

50A, Maximum: 60A

Rated Discharge Current:

100A Max: 200A

Solar Charging:

3400W MPPT

Weight:

128 Kg

Highlight:

5kW residential solar battery storage

AC Output residential solar battery storage

10kWh solar backup battery for home

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Wooden Box

Delivery Time

18-20work days

Payment Terms

T/T

Supply Ability

500pcs/month

Compact 2.56kWh Solar Power Battery Systems Easy Maintenance Safety Operation

Chat Now

video

Wall Mounted Residential Solar Energy Storage System With 5.12kWh LiFePO4 Battery

Chat Now

video

10.24kWh 51.2V 200Ah LiFePO4 Energy Storage Battery For Home Solar Systems

Chat Now

video

Wall Mounted Home Energy Storage System 220V Household Solar Battery For 6 Parallel Machines

Chat Now

18658046918

eason@shunxiangenergy.com

86--18658046918

Chat Now

Product Description

5kW AC Output 10kWh Capacity Portable Home Solar Energy Storage Power Supply

Product Specifications

Rated Power	5000W
AC Output	5000W
Capacity	10kWh
Cut-off Charging Voltage	54.8V
Cut-off Discharging Voltage	41.6V
Rated Charging Current	50A (Maximum: 60A)
Output Voltage	40-56Vdc
Rated Discharge Current	100A (Maximum: 200A)
Interface	RS485 for LCD/CAN
Solar Charging Support	Built-in 3400W MPPT
Weight	128kg

Product Features

Control Panel and Ports

Power Switch
Status Indicator
Exit
Up
Down
Confirm
Charging Indicator
Fault Indicator
PV- Input
PV+ Input
Battery Negative Terminal
Battery Positive Terminal
Battery Negative Terminal
Battery Positive Terminal
AC Output
AC Output
RS485
AC Charging
DIP Switch
Reset Switch
Low-voltage Switch
ON/OFF Indicator
RUN Indicator
ALM Indicator
SOC Indicator
Dry Contact
Communication RS485
Communication CAN
RS232
Parallel RS485
Parallel RS485

Operating Instructions

Turn on Low-voltage Switch (21) to activate battery output.
Turn on Power Switch (1) to activate inverter output.
Status indicator (Green):
- ① In grid-tied mode, output is powered by utility grid and remains steady.
- ② In battery mode, output is powered by battery or PV and flashes.
Charge Indicator (Green):
- ① Fully charged battery: Steady on
- ② Charging battery: Flashing
Fault Indicator (Red):
- ① Inverter fault: Steady on
- ② Inverter warning: Flashing
Function Keys:
- ① Exit: Leave setup mode
- ② Up: Return to previous selection
- ③ Down: Navigate to the next option
- ④ Confirm: Confirm selections in setup mode or enter setup mode
Pressing the Up or Down keys cycles through LCD display messages
Hold the Confirm key for 3 seconds to enter setup mode. Press the Up or Down keys to select a setup program. Press Confirm to confirm the selection or Exit to cancel.
