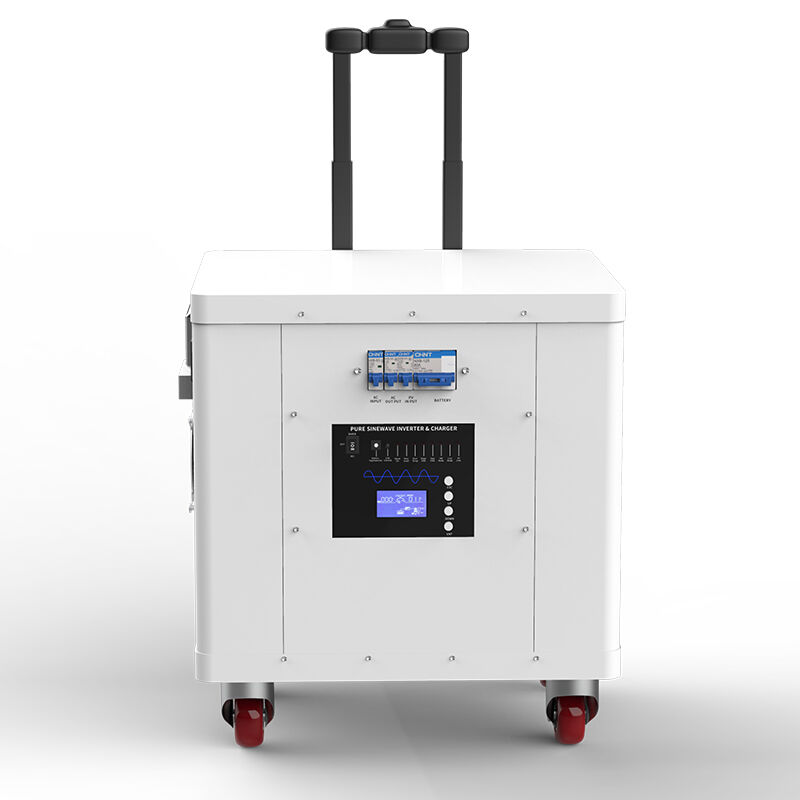

3500W 5kWh Capacity Solar Energy Storage System With 10ms UPS Switching Time
| Rated Power: | 3500W | Voltage: | 51.2V |
| Capacity: | 5kWh | Output Voltage Waveform: | Pure Sine Wave |
| UPS Switching Time: | 10ms | Solar Charging: | 3400W MPPT |
| Dimensions: | 510*450*450mm | Weight: | 99kg (in Wooden Crate) |
| High Light: | 3500W solar energy storage system,5kWh solar energy storage system,3500W solar power storage batteries |
||
- 3500W rated power with 5000W peak power output
- 5kWh capacity for extended power supply
- Pure sine wave output for clean power delivery
- Built-in 3400W MPPT solar charge controller

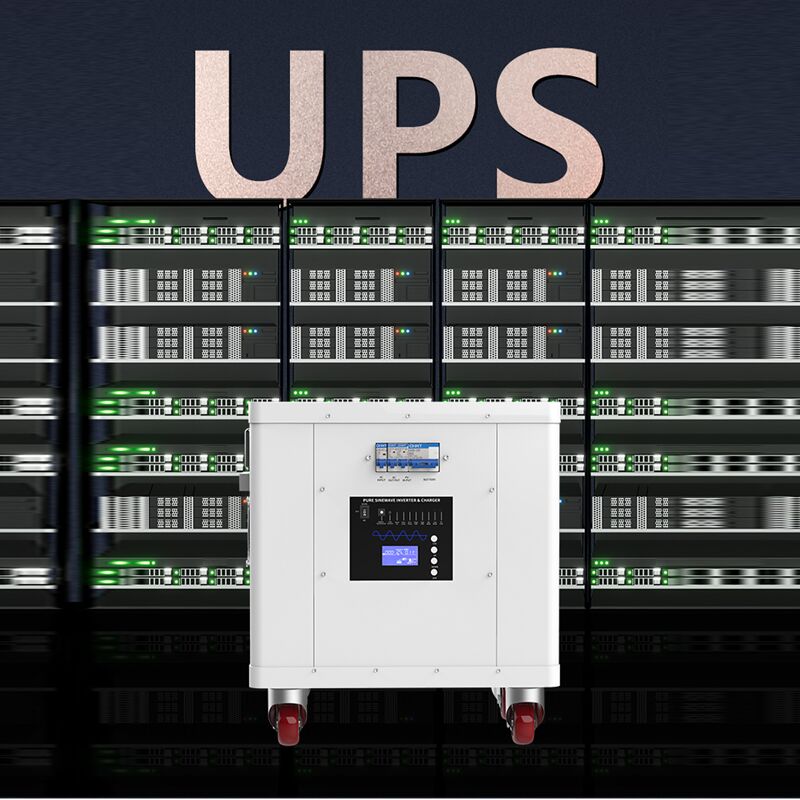

- Fast 10ms UPS switching for uninterrupted power

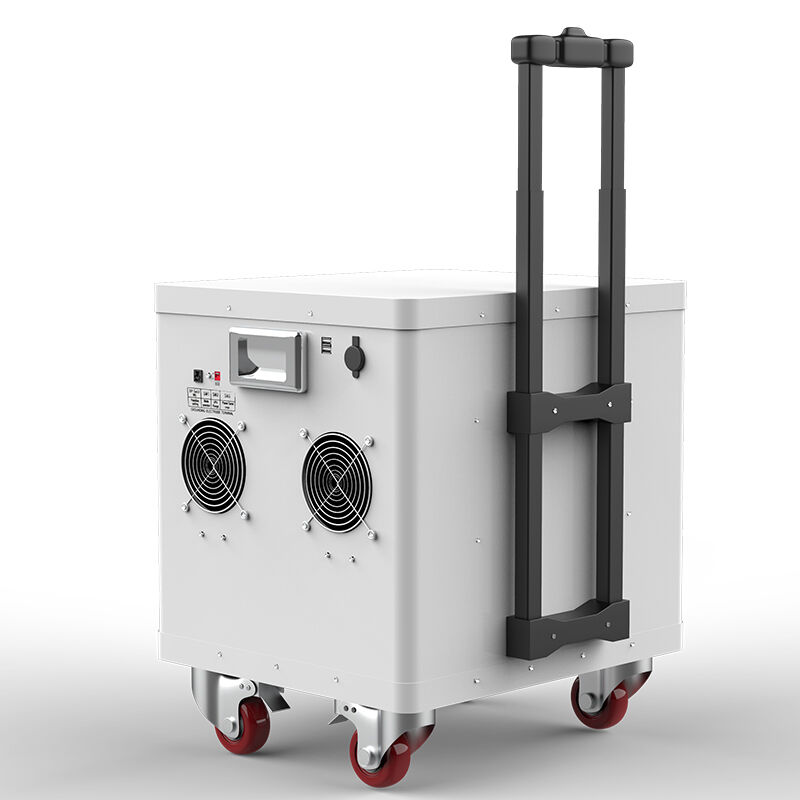

- Compact portable design with retractable handle
| Parameter | Value |
|---|---|
| Rated Power | 3500W |
| Peak Power | 5000W |
| Voltage | 51.2V |
| Capacity | 5kWh |
| Output Voltage Waveform | Pure Sine Wave |
| Frequency | 50 or 60±0.3Hz |
| Output Efficiency | >91.5% |
| UPS Switching Time | 10ms |
| Rated Charging Current | 50A (Maximum: 60A) |
| Output Voltage | 40-56Vdc |
| Rated Discharge Current | 100A (Max: 200A) |
| Interface | RS485 for LCD/CAN |
| Solar Charging Support | Built-in 3400W MPPT |
| Dimensions | 510*450*450mm (with retracted handle) |
| Weight | 99kg (in wooden crate) |
