Place of Origin:
China
Brand Name:
shunxiang
Certification:
CE,ROSH,FCC,UN38.3
Model Number:
HO3-1

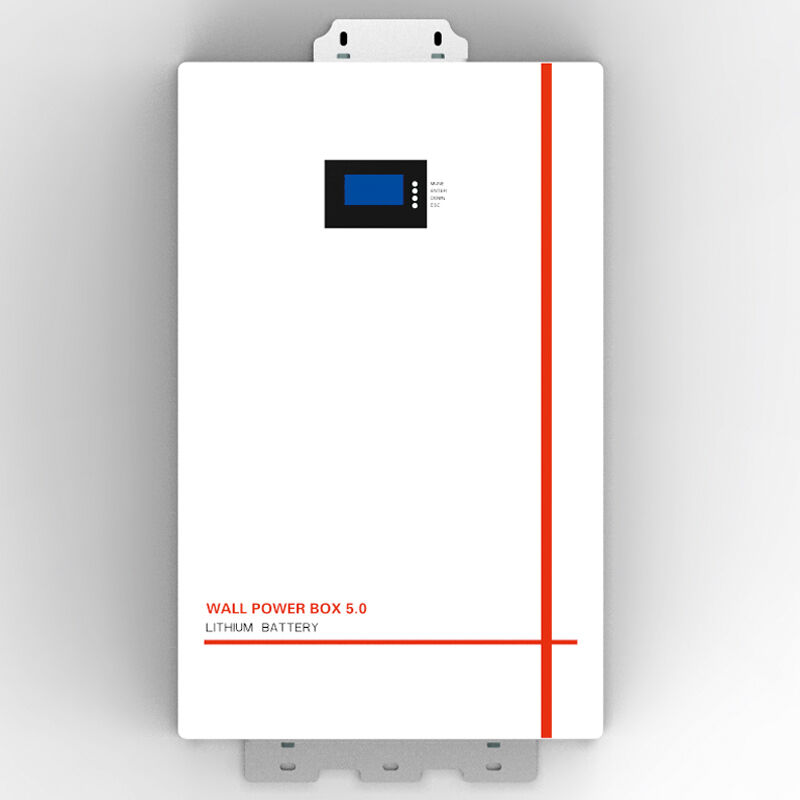

High-performance wall-mounted energy storage system with LiFePO₄ battery technology, designed for residential solar applications.
| Parameter | Value |
|---|---|
| Model | HO3-1 |
| Battery Type | LiFePO₄ |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 50Ah |
| Total Capacity | 2.56kWh |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 41.6V |
| Charging Current | 50A |
| Discharging Current | 50A |

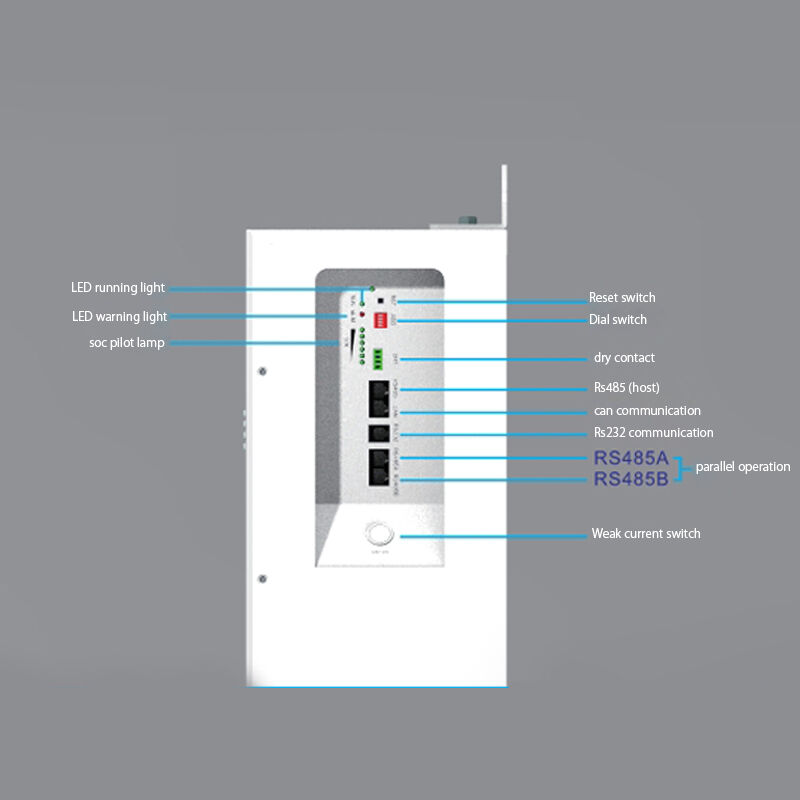

| Communication Interface | RS485 + CAN + RS232 |
| Communication Protocol | Compatible with multiple mainstream inverter protocols |
| Parameter | Value |
|---|---|
| Dimensions (L*W*H) | 660 * 450 * 155mm |
| Packaging Dimensions | 800 * 500 * 200mm (Wooden Crate) |
| Net Weight | 30kg |
| Gross Weight | 42kg |
| Parameter | Value |
|---|---|
| Charging Temperature Range | 0℃ to 45℃ |
| Discharging Temperature Range | -20℃ to 55℃ |
| Storage Temperature | -10℃ to 45℃ (Charge/discharge once per month) |
