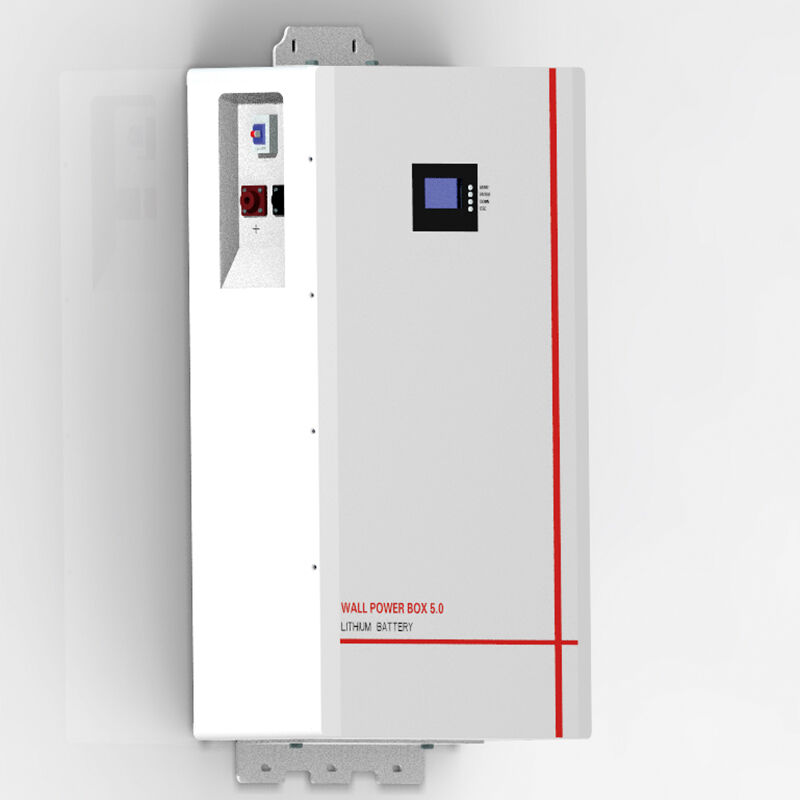

Wall Mounted Residential Solar Energy Storage System With 5.12kWh LiFePO4 Battery
| Model: | HO3-2 | Battery Type: | LiFePO₄ |
| Nominal Voltage: | 51.2V | Communication Interface: | RS485+CAN+RS232 |
| Capacity: | 5.12kWh | Gross Weight: | 42kg |
| High Light: | Wall Mounted Solar Energy Storage System,Residential Solar Energy Storage System,5.12kWh residential solar battery storage |
||
High-performance wall-mounted LiFePO₄ battery system designed for residential solar energy storage applications. Provides reliable power storage with advanced safety features and compatibility with most market inverters.
| Model | HO3-2 |
|---|---|
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah (5.12kWh) |
| Voltage Range | Charge: 58.4V | Discharge: 41.6V |
| Current Rating | Charge/Discharge: 100A |

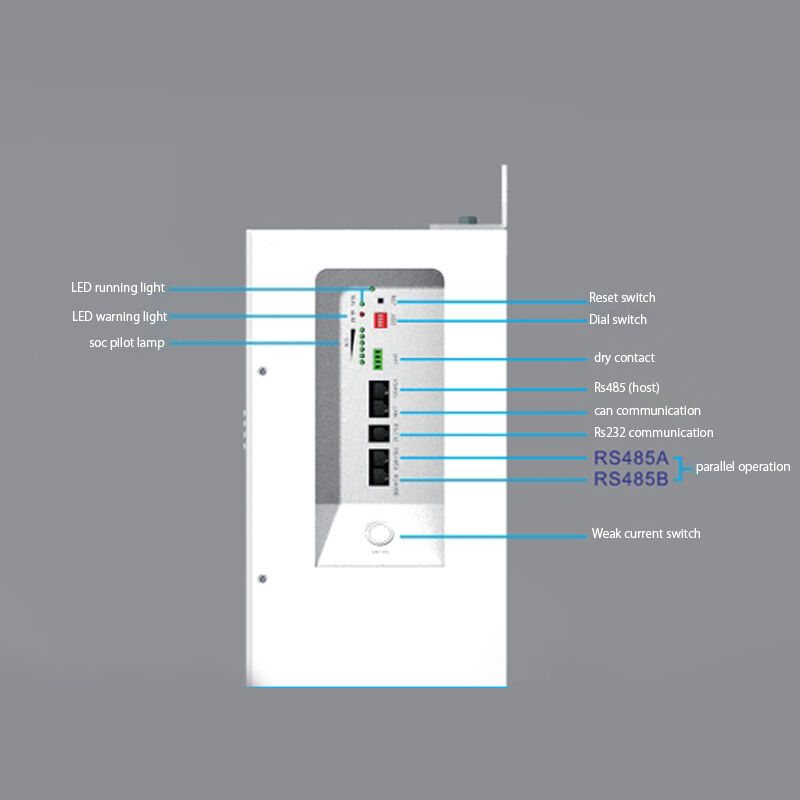

| Communication | RS485 + CAN + RS232 interfaces |
| Protocol Compatibility | Supports multiple mainstream inverter protocols |
| Dimensions | 660 * 450 * 155mm (L*W*H) |
| Packaging | Wooden crate: 800 * 500 * 200mm |
| Temperature Range | Charge: 0°C to 45°C Discharge: -20°C to 55°C Storage: -10°C to 45°C (charge/discharge once per month) |
| Weight | Net: 30kg | Gross: 42kg |
- High Capacity: 5.12kWh energy storage for extended power backup
- Wide Temperature Range: Reliable operation in extreme conditions (-20°C to 55°C)
- Universal Compatibility: Works with most market inverters through multiple communication protocols
- Space-Saving Design: Compact wall-mounted form factor ideal for residential installations
- Safe Chemistry: LiFePO₄ battery technology offers superior thermal stability and long cycle life
15kWh Home Energy Storage System 10kW Output 9 In 1 Smart BMS Household Solar Battery
15kWh Solar Generator with 10200W BMS Dual PV Input Home Energy Storage System Key Features 15kWh Massive Capacity & 6500 Cycles - LiFePO4 battery (51.2V 280Ah) provides reliable 24/7 home power with ultra-long lifespan (6500 cycles) Solar-Ready with 6500W PV Input - Built-in 120A MPPT solar charger (max 6500W input, 60-500VDC) for efficient green energy storage 9-in-1 Smart BMS Protection - Comprehensive monitoring including over-voltage, short circuit, temperature, and
Wall Mounted Home Energy Storage System 220V Household Solar Battery For 6 Parallel Machines
Wall-Mounted 10 kWh with DMS Home Energy Storage Power Supply 1.1kW BMS UPS Solar System for 6 Parallel Machines Pure Sine Wave Battery Specifications Name LiFePO4 Battery Module Battery/Cell Classification Li-ion Battery Normal Voltage 51.2V Rated Capacity 200Ah Watt-hour rating 10240Wh Appearance Approximate Silver Cuboid Mass 92Kg Li Content N/A Internal cell combination mode 16S1P Limited Charge Voltage 58.4V Discharge Cut-Off Voltage 40V Charge Current 60A Max.
20kWh 110V Home Battery Storage System With 300Ah LiFePO4 Battery Module
High Frequency 15kWh-20kWh Pure Sine Wave Power Supply for Home Energy Storage MPPT BMS Communication Variety Floor-Standing Product Specifications Name LiFePO4 Battery Module Battery/Cell Classification Li-ion Battery Normal Voltage 51.2V Rated Capacity: 300Ah Watt-hour rating 15360Wh Appearance: Approximate Silver Cuboid Mass 126.18Kg Li Content: N/A Internal cell combination mode 16S1P Limited Charge Voltage 58.4V Discharge Cut-Off Voltage: 40V Charge Current 60A Max.
51.2V 5kW Home Energy Storage System IP54 Solar Hybrid Residential Battery Storage
W93 Wall-Mounted Home Energy Storage System 10kWh 5500W High Frequency Pure Sine Wave BMS Multiple UPS Solar Generator Key Features 10kWh High Density + 6500 Cycles - Compact LiFePO4 battery (51.2V 200Ah) delivers reliable power for 24/7 home use with industry-leading 6500-cycle lifespan at 80% DoD Space-Saving Wall Design - Ultra-slim 180mm profile (796*485mm) saves floor space with UN-certified cardboard packaging ensuring damage-free shipping (Net 85kg) Solar Hybrid + Grid
