5000W Hybrid Solar Inverter with Pure Sine Wave and Multi-Function Protection for Reliable Power Conversion

5000W Hybrid Solar Inverter with Pure Sine Wave and Multi-Function Protection for Reliable Power Conversion

Place of Origin:

China

Certification:

CE,ROSH,FCC

Chat Now
Request A Quote
5000W Hybrid Solar Inverter with Pure Sine Wave and Multi-Function Protection for Reliable Power Conversion 5000W Hybrid Solar Inverter with Pure Sine Wave and Multi-Function Protection for Reliable Power Conversion 5000W Hybrid Solar Inverter with Pure Sine Wave and Multi-Function Protection for Reliable Power Conversion 5000W Hybrid Solar Inverter with Pure Sine Wave and Multi-Function Protection for Reliable Power Conversion
Product Details
Rated Power:
5000 W
Payment & Shipping Terms
Minimum Order Quantity
200set
Packaging Details
Carton/Wooden crate
Delivery Time
30-35days
Payment Terms
T/T
Supply Ability
10000 set/month
RELATED PRODUCTS
Good price 6000W Peak Power Portable Power Station with 110V/220V AC Output and Low Voltage Alarm online

6000W Peak Power Portable Power Station with 110V/220V AC Output and Low Voltage Alarm

Chat Now
Good price Portable Power Station with 5000W Peak Power 2500W Continuous Power and Pure Sine Wave Output for Reliable Energy Supply online

Portable Power Station with 5000W Peak Power 2500W Continuous Power and Pure Sine Wave Output for Reliable Energy Supply

Chat Now
Good price Portable Power Station with 4000W Peak Power 2000W Continuous Power and Advanced Protection Features for Reliable Energy Supply online

Portable Power Station with 4000W Peak Power 2000W Continuous Power and Advanced Protection Features for Reliable Energy Supply

Chat Now
Good price Portable 3000W Peak Power Solar Inverter with Pure Sine Wave Output for Lithium-Ion Battery Systems online

Portable 3000W Peak Power Solar Inverter with Pure Sine Wave Output for Lithium-Ion Battery Systems

Chat Now
CONTACT US
18658046918
eason@shunxiangenergy.com
86--18658046918
Chat Now
Product Description

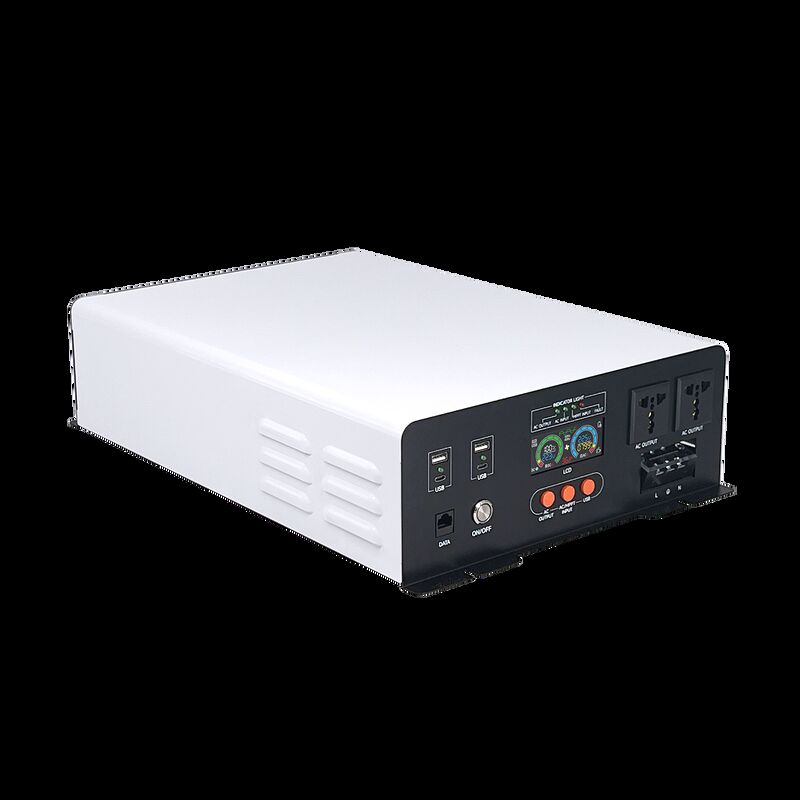

5000W Hybrid Inverter with Pure Sine Wave and Multi-Function Protection
Product Overview

High-quality portable solar inverter featuring pure sine wave output and comprehensive protection systems for reliable power conversion in various applications.

Technical Specifications
Input Voltage 48 Vdc
Input Voltage Range 39-60 Vdc
Rated Power 5000 W
AC Voltage 220 V
Output Frequency 50Hz/60Hz
Output Waveform Pure Sine Wave
Conversion Efficiency ≤93%
Total Harmonic Distortion <3% (Linear Load)
Mains Charging Power 1200W
UPS Switching Time <20 ms
Protection Features
  • Low Voltage Protection: 39 Vdc (Inverter Output Shutdown)
  • Low Voltage Recovery: 46 Vdc
  • Overvoltage Protection: 61 Vdc (Inverter Output Shutdown)
  • Overload Protection: ≥5500W (Inverter Output Shutdown)
  • Over-Temperature Protection: ≥85°C (shuts down inverter output)

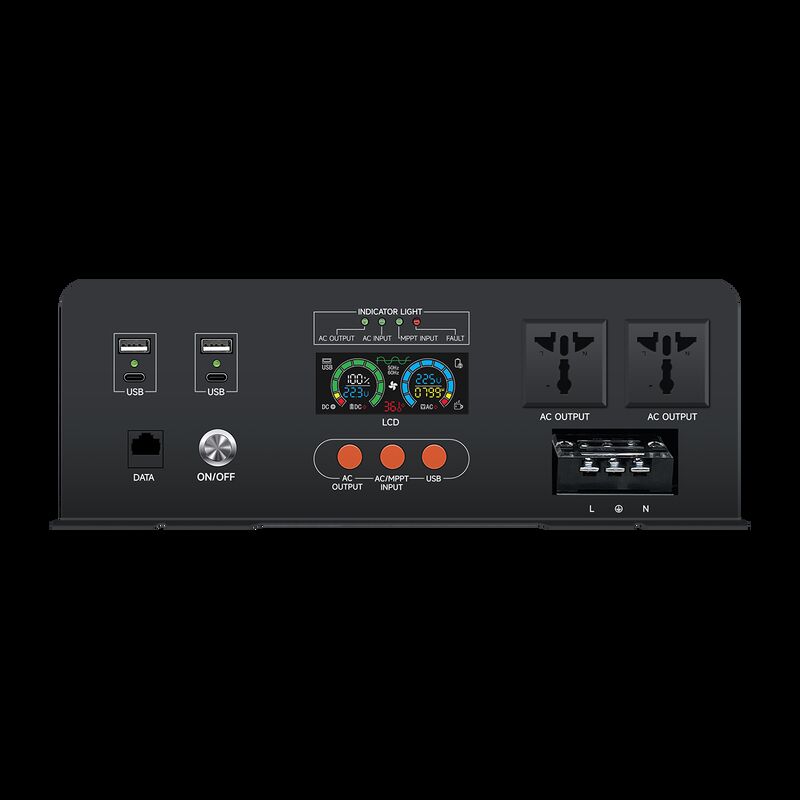

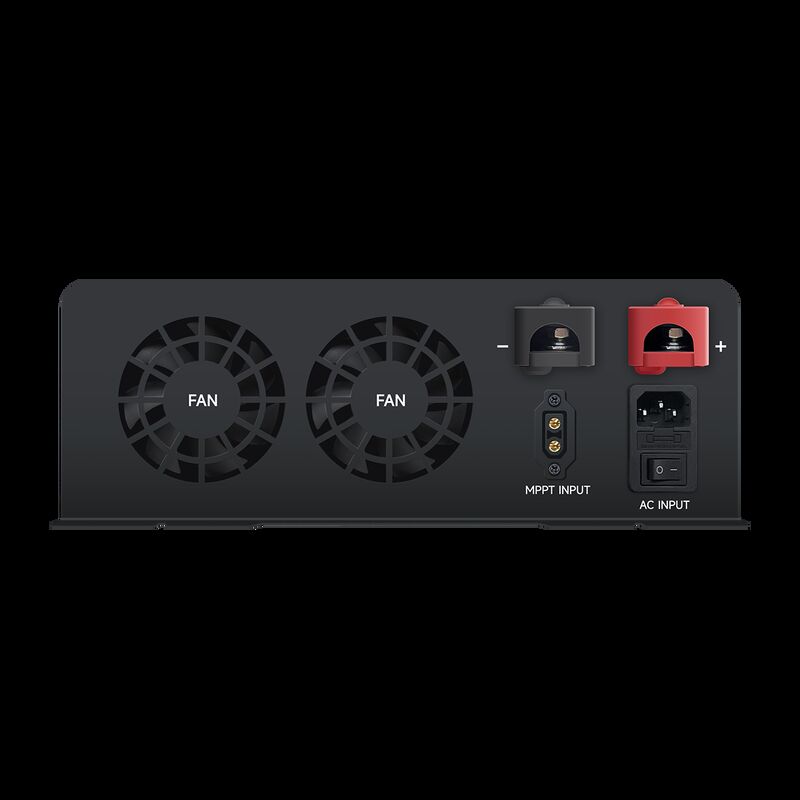

Connectivity & Ports
  • AC Output Sockets: 2
  • USB Ports: 4 (2 USB-A, 2 USB-C)
  • AC Output Terminal Block: 1
  • MPPT Charging Port: 1 (XT90 connector)
  • Mains Charging Port: 1
  • Data Communication Port: 1 (RS-485)
Physical Specifications
Product Dimensions 296 × 318 × 104 mm (L × W × H)
Product Weight (Net) 7.45 kg
Packaging Dimensions 375 × 345 × 170 mm (L × W × H)
Packaging Weight (Gross) 9.7 kg
Operating Conditions
  • Operating Temperature: -20°C to 60°C
  • Storage Temperature: -40°C to 70°C
  • Humidity: 10-90% RH (non-condensing)
  • Operating Altitude: ≤3000 m (derated above 1000 m)
