1000W Peak Power Inverter with Pure Sine Wave and Multi-Function Protection for Solar Applications

Basic Properties
Place of Origin: China
Certification: CE,ROSH,FCC
Trading Properties
Minimum Order Quantity: 200set
Payment Terms: T/T
Supply Ability: 10000 set/month
Tags

hybrid solar inverter

solar panel inverter

home inverter system
Specifications
Peak Power: 1000W Continuous Power: 500W
Output Efficiency: ≥87% Output Voltage: 110Vac/220Vac
Output Frequency: 50Hz/60Hz Output Waveform: Pure Sine Wave
Product Description
1000W Peak Power Inverter: Pure Sine Wave with Multi-Function Protection
Product Overview

Portable solar inverter delivering 110Vac/220Vac pure sine wave output with comprehensive protection features for reliable power conversion in industrial and mobile applications.

Technical Specifications
Peak Power 1000W
Continuous Power 500W (resistive load)
Output Efficiency ≥87%
Output Voltage 110Vac/220Vac
Output Frequency 50Hz/60Hz
Output Waveform Pure Sine Wave
Total Harmonic Distortion <3% (Linear Load)
Input Voltage 12Vdc; 24Vdc; 48Vdc; 60Vdc
AC Output Socket 1
Protection Features
  • Overload protection: ≥500W, inverter output shuts down
  • Low-voltage protection shutdown with alarm system
  • Overvoltage protection shutdown
  • Over-temperature protection: ≥70°C, inverter output shuts down
  • Short-circuit protection
  • Intelligent cooling fan with temperature control

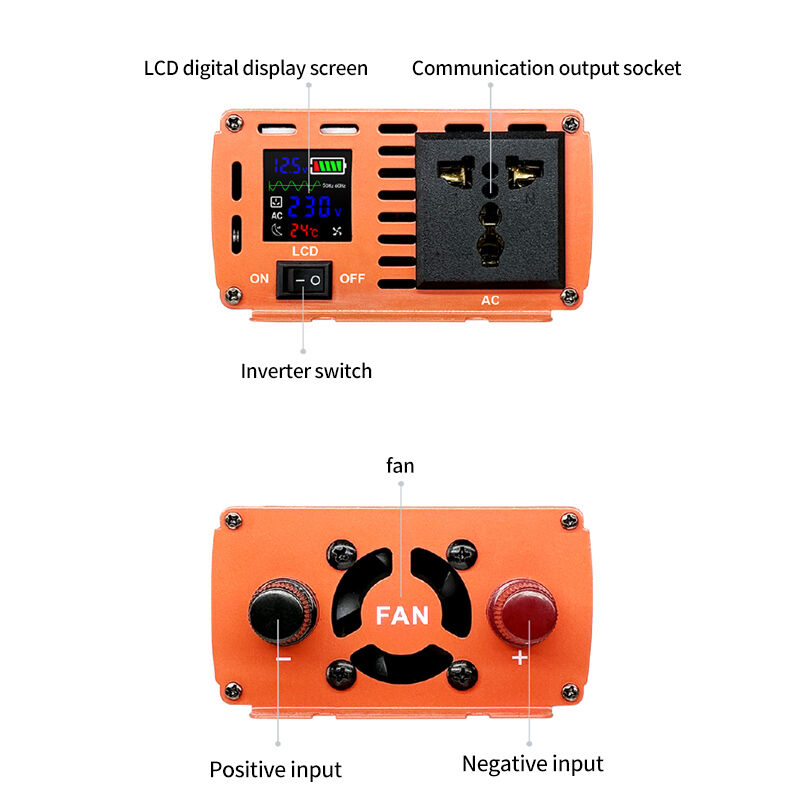

Display & Controls
  • LCD Display showing battery voltage, charge level, AC voltage, AC frequency, error codes, and fan status
  • Screw-tightened positive and negative terminals
  • Intelligent fan control (activates at ≥33°C)
Environmental Specifications
Operating Temperature -20°C to 60°C
Operating Humidity 10% to 90% RH (non-condensing)
Storage Temperature -40°C to 70°C
Operating Altitude ≤3000 m (Derated operation above 1000 m)
Physical Specifications

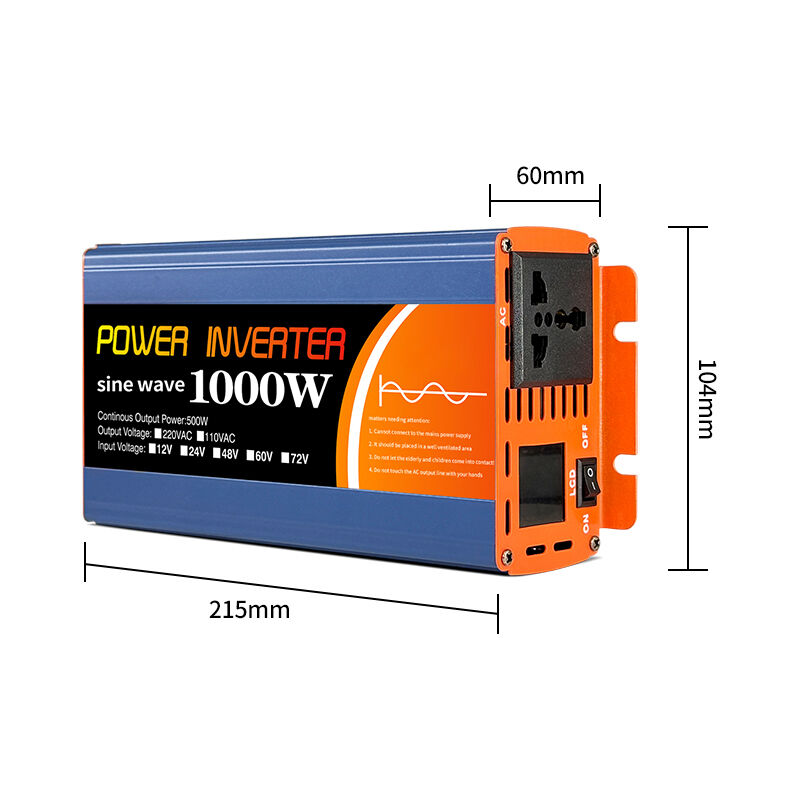

Product Dimensions 215 × 104 × 60 mm
Product Weight (Net) 0.75 kg
Packaging Dimensions 245 × 150 × 75 mm
Packaging Weight (Gross) ≈1 kg
Product Images

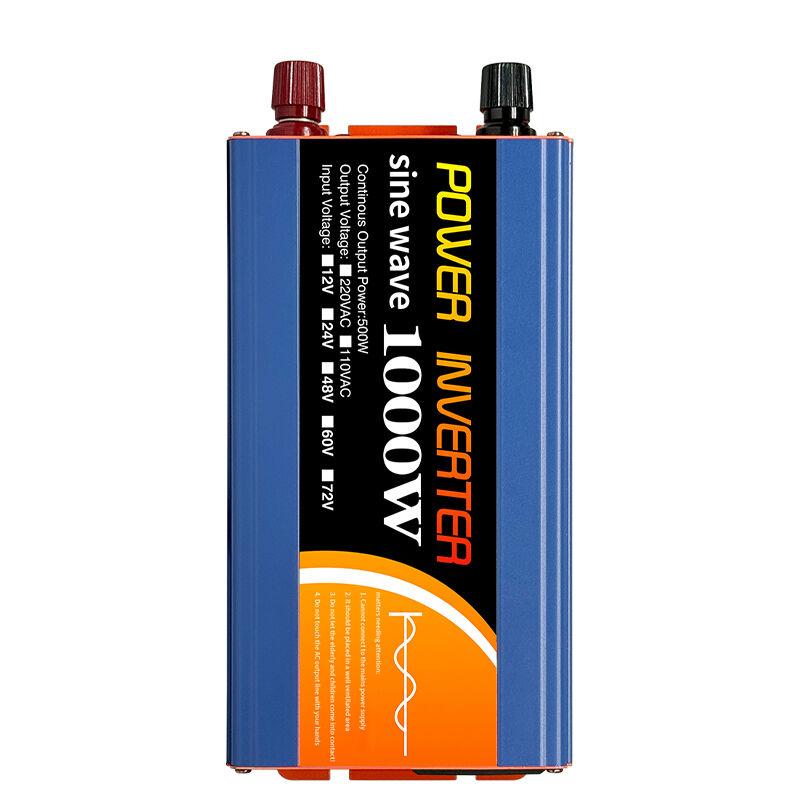

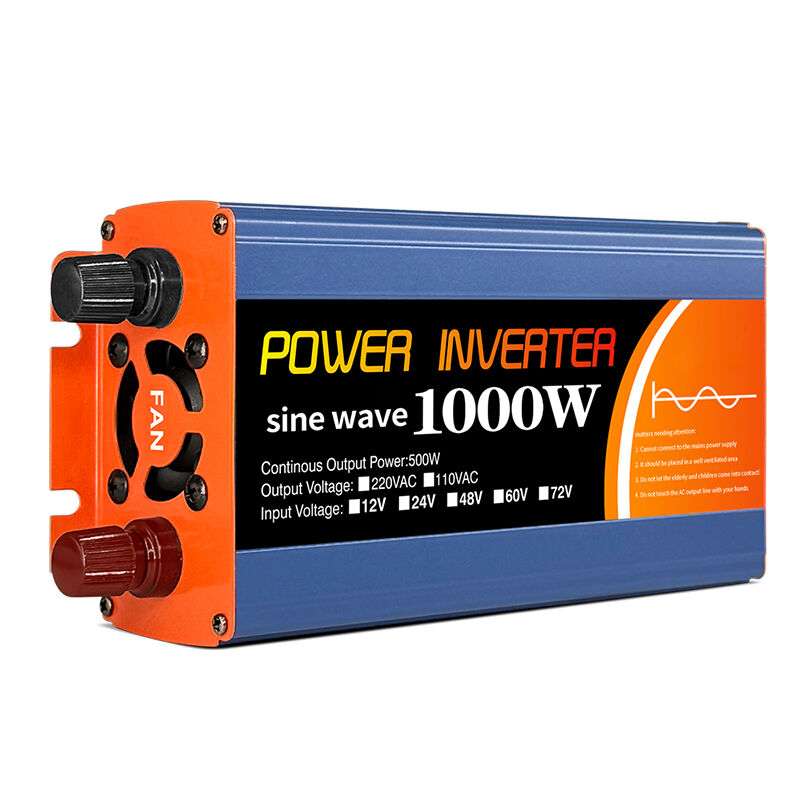

1000W Peak Power Inverter front view showing LCD display and controls
