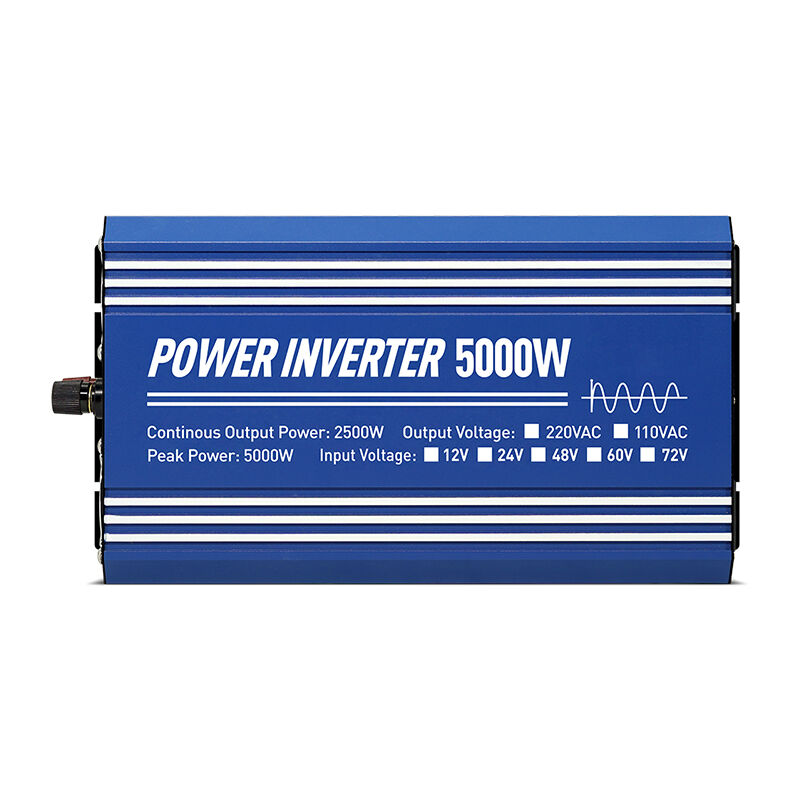

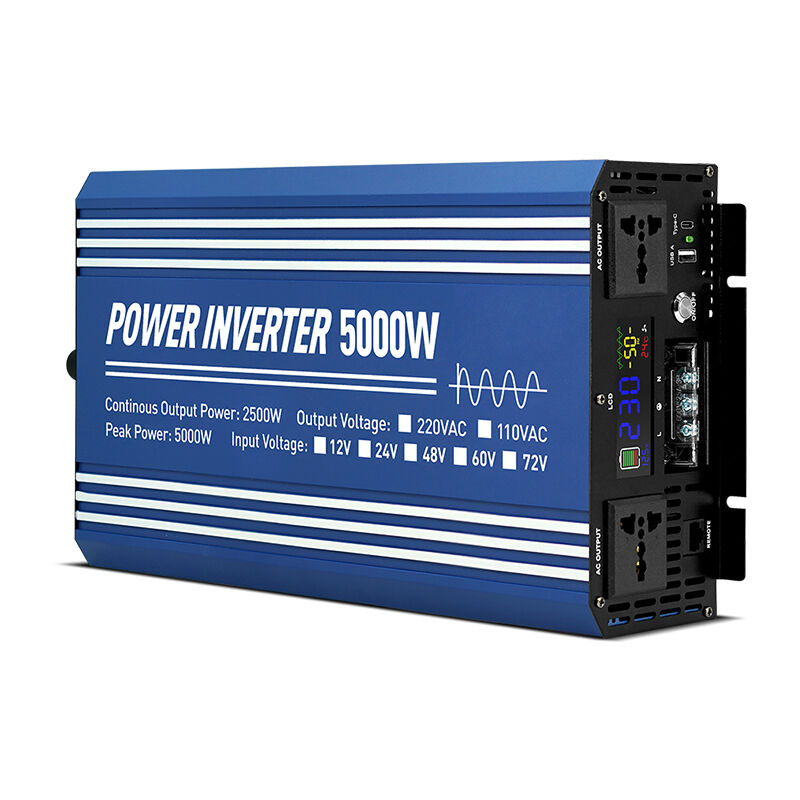

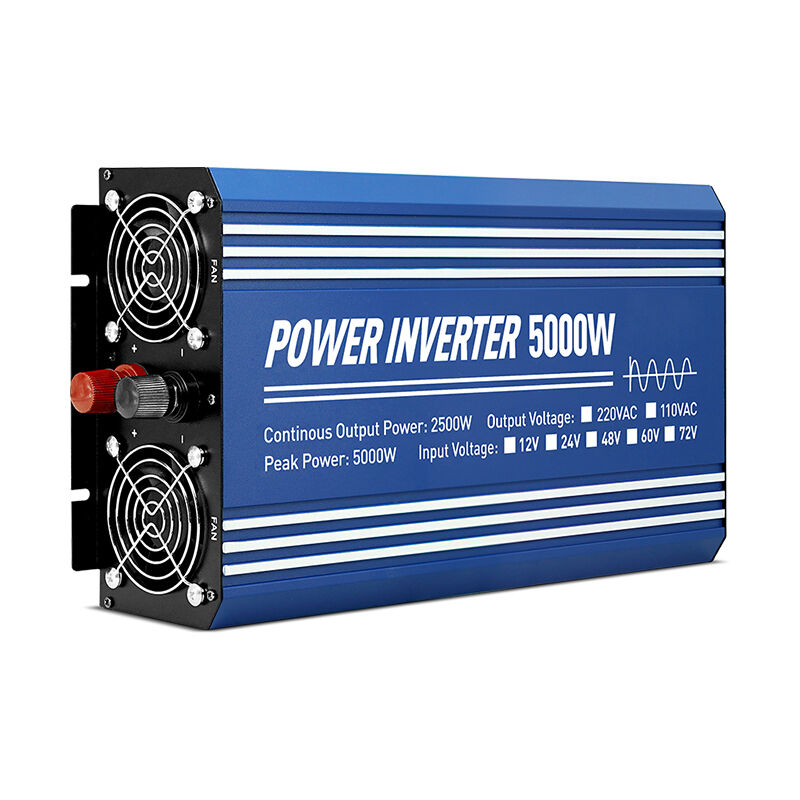

Portable Power Station with 5000W Peak Power 2500W Continuous Power and Pure Sine Wave Output for Reliable Energy Supply

Basic Properties
Place of Origin: China
Certification: CE,ROSH,FCC
Trading Properties
Minimum Order Quantity: 200set
Payment Terms: T/T
Supply Ability: 10000 set/month
Tags

hybrid solar inverter

solar panel inverter

home inverter system
Specifications
Peak Power: 5000W Continuous Power: 2500W
Output Efficiency: ≥87% Output Voltage: 110 VAC/220 VAC
Output Frequency: 50 Hz/60 Hz Input Voltage: 12 VDC
Input Voltage Range: 9.5–15.5 VDC
Product Description
Portable Power Station with 5000W Peak Power and 2500W Continuous Power Output
Key Specifications
Peak Power 5000W
Continuous Power 2500W (resistive load)
Output Efficiency ≥87%
Output Voltage 110 VAC/220 VAC
Output Frequency 50 Hz/60 Hz
Output Waveform Pure Sine Wave
Technical Details
Total Harmonic Distortion <5% (Linear Load)
Input Voltage 12 VDC
Input Voltage Range 9.5-15.5 VDC
Low Voltage Alarm 9.5 Vdc
Low Voltage Protection 9 Vdc
Overvoltage Protection 16 Vdc
Protection & Safety Features
Over-Temperature Protection ≥70°C, Inverter Output Shutdown
Short-Circuit Protection Available

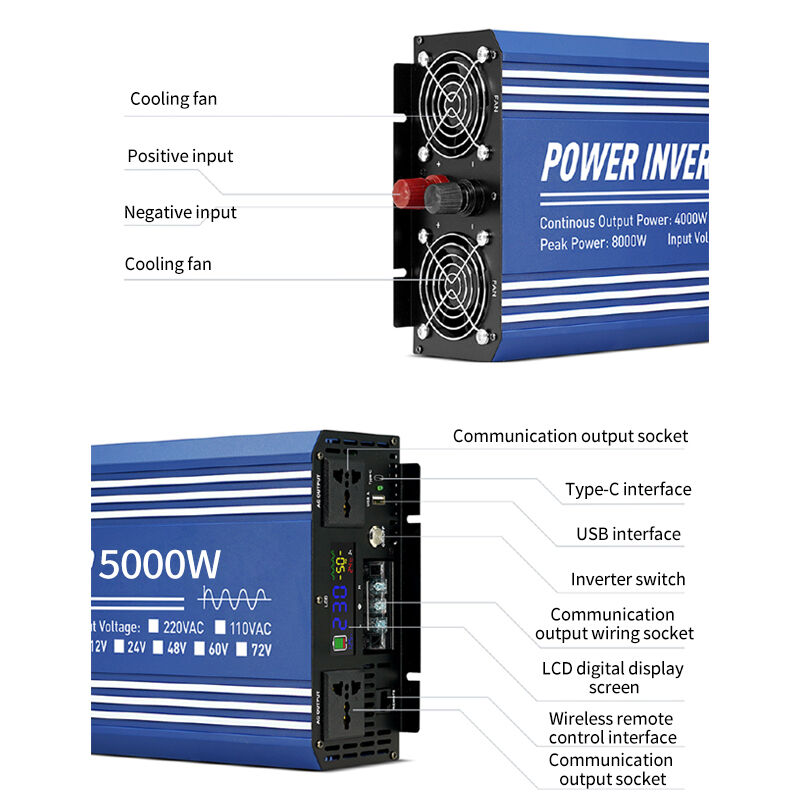

AC Output Sockets 2
Communication RS-485
Physical Specifications
Product Dimensions 395 * 208 * 94 mm
Product Weight (Net) 4.8 kg
Packaging Dimensions 463 * 268 * 155 mm
Packaging Weight (Gross) ≈5.6 kg
Environmental Specifications
Operating Temperature -20°C to 60°C
Operating Humidity 10% to 90% RH (non-condensing)
Storage Temperature -40°C to 70°C
Storage Humidity 10% to 95% RH (non-condensing)
Operating Altitude ≤3000 m (Derated above 1000 m)
Portable Power Station with 5000W Peak Power and 2500W Continuous Output
