24V/48V/60V 8000W Peak Power Pure Sine Wave Solar Inverter for Home Use with Lithium-Ion Battery Compatibility

Basic Properties
Place of Origin: China
Certification: CE,ROSH,FCC
Trading Properties
Minimum Order Quantity: 200set
Payment Terms: T/T
Supply Ability: 10000 set/month
Tags

hybrid solar inverter

solar panel inverter

home inverter system
Specifications
Peak Power: 8000W Continuous Power: 4000W
Input Voltage: 24V/48V/60V AC output sockets: 2
USB ports: 2 Cooling fans: 2
Product Weight: 5.75 Kg Packaging Weight (Gross): 6.7 Kg
Product Description
24V/48V/60V Portable Solar Pure Sine Wave Inverter with 8000W Peak Power for Home Use
Product Overview

High-performance portable solar inverter designed for home use, featuring pure sine wave output and compatibility with lithium-ion battery storage systems. Ideal for residential solar power applications.

Technical Specifications
Peak Power 8000W
Continuous Power 4000W (resistive load)
Output Efficiency ≥87%
Output Voltage 110 VAC/220 VAC
Output Frequency 50 Hz/60 Hz
Output Waveform Pure Sine Wave
Total Harmonic Distortion (THD) <5% (Linear Load)
Input Voltage 24/48/60V
Input Voltage Range 19-30Vdc; 38-58Vdc; 53-70Vdc
Protection & Safety Features
  • Low Voltage Alarm: 20Vdc; 39Vdc; 54Vdc
  • Low Voltage Protection Shutdown: 19Vdc; 38Vdc; 53Vdc
  • Overvoltage Protection Shutdown: 30Vdc; 60Vdc; 72Vdc
  • Over-temperature protection: ≥70°C, inverter output shuts down
  • Short-circuit protection: Available

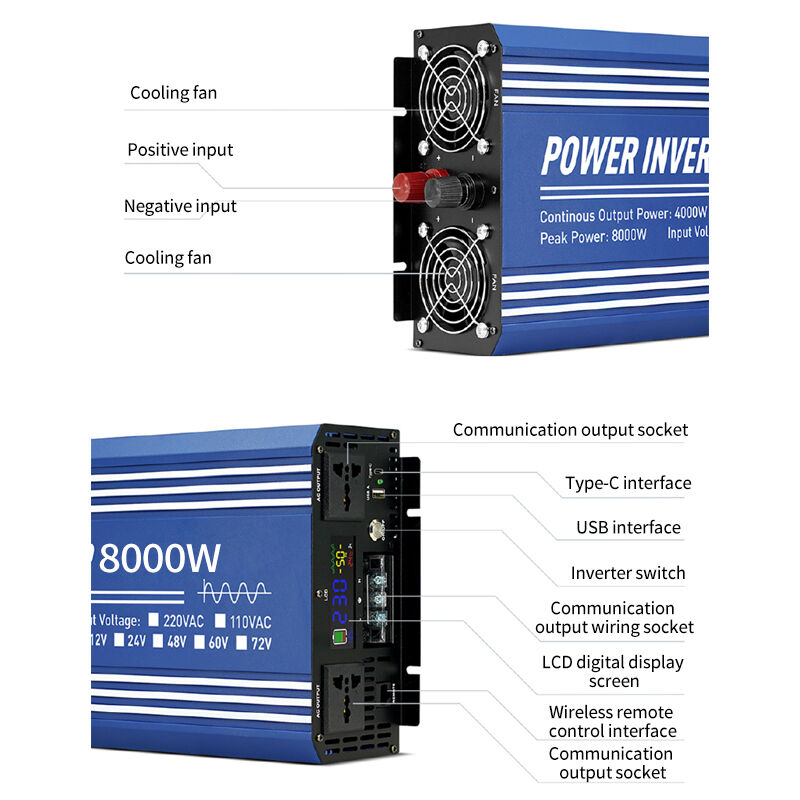

Connectivity & Display
  • AC output sockets: 2
  • USB ports: 2 (1 USB-A port, 1 USB-C port)
  • Communication: RS-485
  • Cooling fans: 2 (intelligent control)
  • LCD Display: Shows battery voltage, charge level, AC voltage, frequency, error codes, and fan status
  • Positive and Negative Terminals: Screw-tightened connections
Environmental Specifications
Operating Temperature -20°C to 60°C
Operating Humidity 10% to 90% RH (non-condensing)
Storage Temperature -40°C to 70°C
Storage Humidity 10% to 95% RH (non-condensing)
Operating Altitude ≤3000 m (Derated operation above 1000 m)

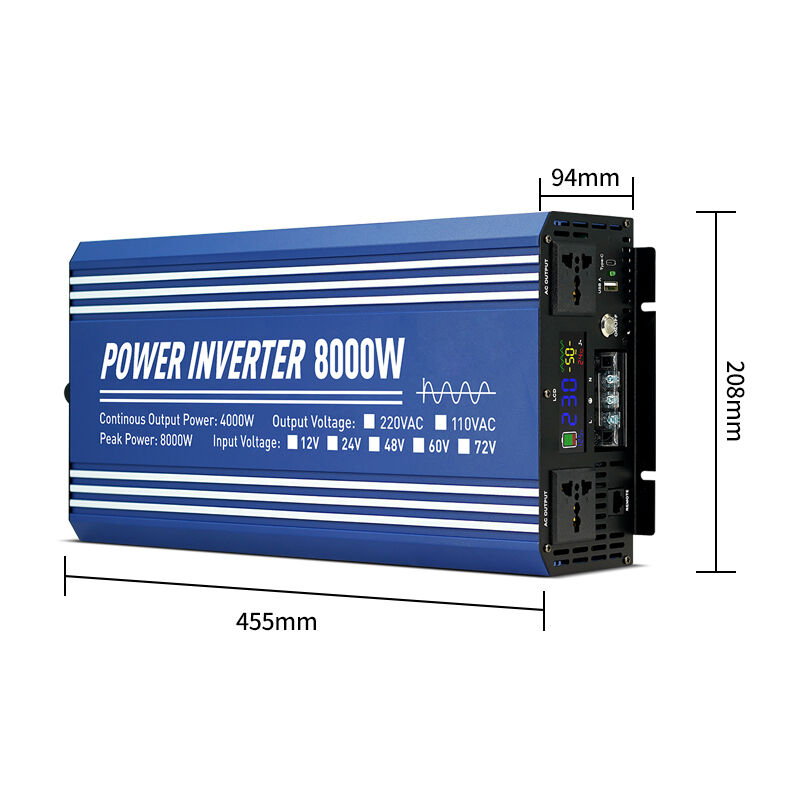

Physical Dimensions
Product Dimensions 455 × 208 × 94 mm
Product Weight (Net) 5.75 kg
Packaging Dimensions 522 × 268 × 155 mm
Packaging Weight (Gross) ≈6.7 kg

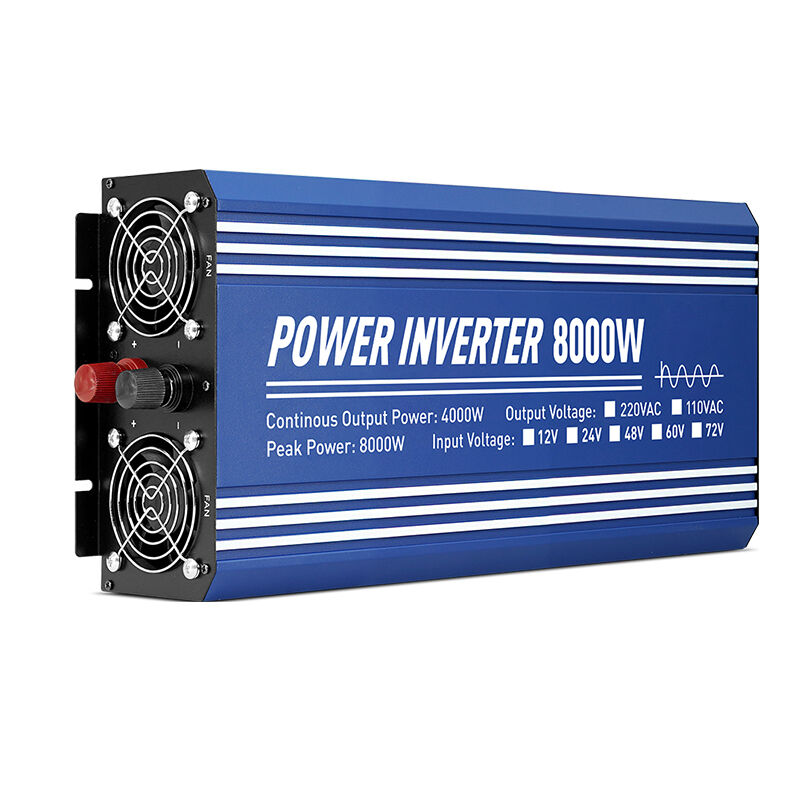

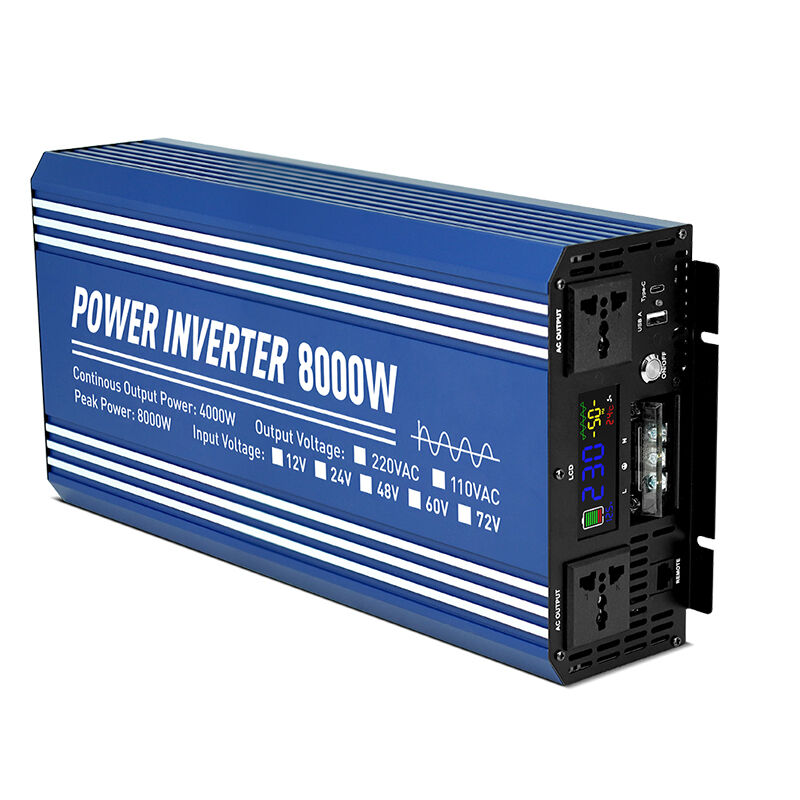

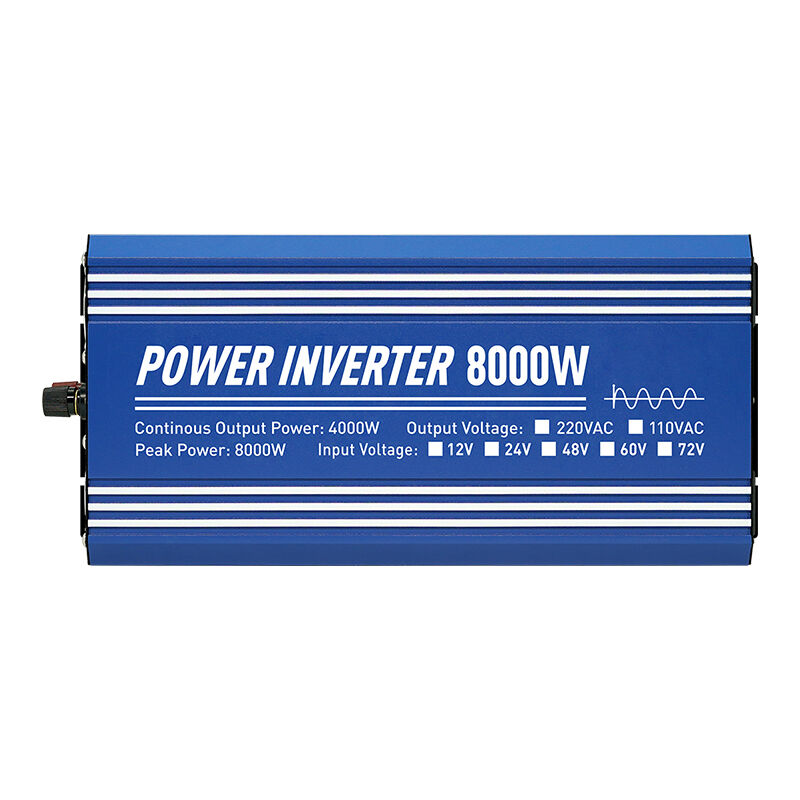

24V/48V/60V Portable Solar Pure Sine Wave Inverter - Product Image
