Portable Power Station with 4000W Peak Power 2000W Continuous Power and Advanced Protection Features for Reliable Energy Supply

Place of Origin:

China

Certification:

CE,ROSH,FCC

Chat Now

Request A Quote

Product Details

Peak Power:

4000W

Continuous Power:

2000W

Low-voltage Alarm:

9.5 Vdc; 20 Vdc; 39 Vdc; 54 Vdc

Low-voltage Protection Shutdown:

9 Vdc; 19 Vdc; 38 Vdc; 53 Vdc

Overvoltage Protection Shutdown:

16 Vdc; 30 Vdc; 60 Vdc; 72 Vdc

Communication:

RS-485

Payment & Shipping Terms

Minimum Order Quantity

200set

Packaging Details

Carton/Wooden crate

Delivery Time

3-8 work days

Payment Terms

T/T

Supply Ability

10000 set/month

6000W Peak Power Portable Power Station with 110V/220V AC Output and Low Voltage Alarm

Chat Now

Portable Power Station with 5000W Peak Power 2500W Continuous Power and Pure Sine Wave Output for Reliable Energy Supply

Chat Now

Portable Power Station with 4000W Peak Power 2000W Continuous Power and Advanced Protection Features for Reliable Energy Supply

Chat Now

Portable 3000W Peak Power Solar Inverter with Pure Sine Wave Output for Lithium-Ion Battery Systems

Chat Now

18658046918

eason@shunxiangenergy.com

86--18658046918

Chat Now

Product Description

Portable Power Station - 4000W Peak Power with Advanced Protection Features

Power Output Specifications

Peak Power	4000W
Continuous Power	2000W (resistive load)
Output Efficiency	≥87%
Output Voltage	110 VAC/220 VAC
Output Frequency	50 Hz/60 Hz
Output Waveform	Pure Sine Wave
Total Harmonic Distortion (THD)	<3% (Linear Load)

Protection & Safety Features

Overload Protection: ≥2000W, Inverter Output Shutdown
Low-voltage Protection: Automatic shutdown at 9Vdc/19Vdc/38Vdc/53Vdc
Overvoltage Protection: Automatic shutdown at 16Vdc/30Vdc/60Vdc/72Vdc
Over-temperature Protection: ≥70°C, inverter output shuts down
Short-circuit Protection: Built-in safety mechanism

Input & Operational Parameters

Input Voltage	12Vdc; 24Vdc; 48Vdc; 60Vdc
Input Voltage Range	9.5~15.5Vdc; 19~30Vdc; 38~58Vdc; 53-70 Vdc
No-Load Current	0.93 A/0.76 A/0.4 A/0.38 A
Standby Power	11.2W/18.4W/19.3W/23W
AC Output Socket	1
Communication	RS-485

Physical Specifications

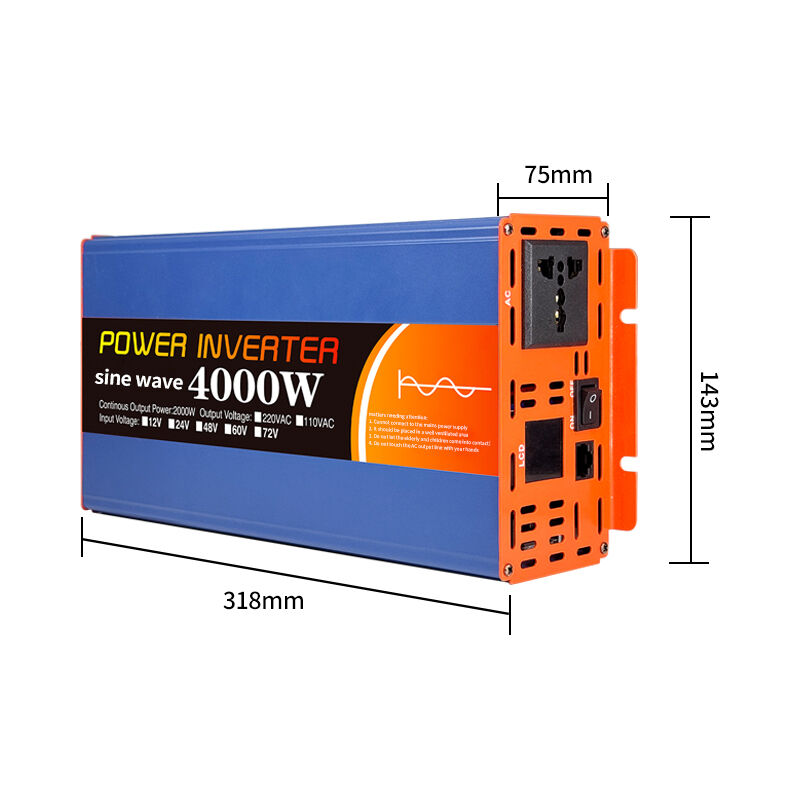

Product Dimensions	318 * 143 * 75 mm
Product Weight (Net)	2.15 kg
Packaging Dimensions	375 * 205 * 145 mm
Packaging Weight (Gross)	≈2.75 kg

Environmental Specifications

Operating Temperature	-20°C to 60°C
Operating Humidity	10% to 90% RH (non-condensing)
Storage Temperature	-40°C to 70°C
Storage Humidity	10% to 95% RH (non-condensing)
Operating Altitude	≤3000 m (Derated operation above 1000 m)

Additional Features

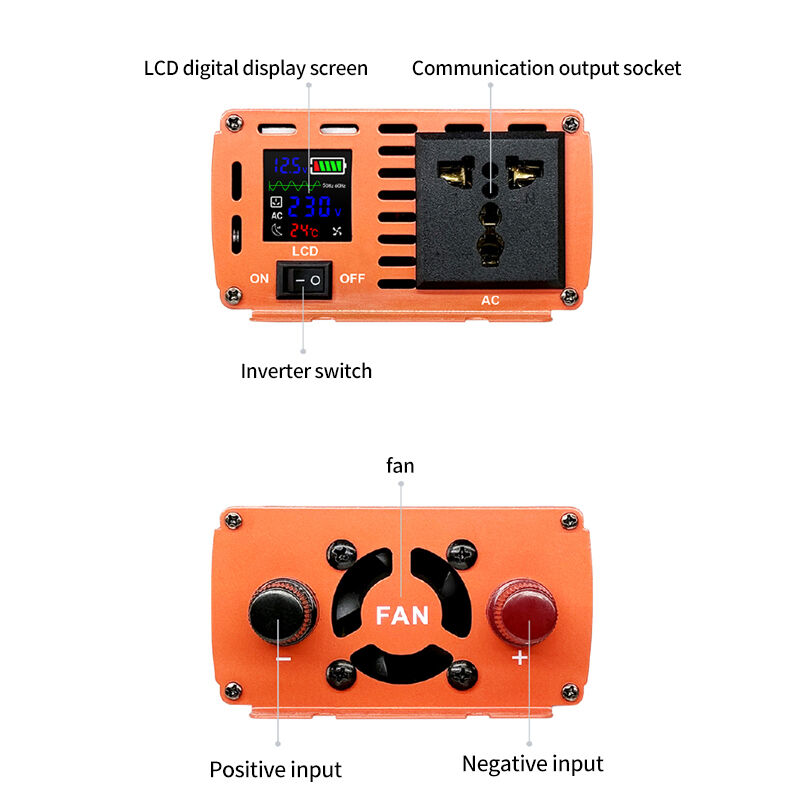

LCD Display: Shows battery voltage, charge level, AC voltage, AC frequency, error codes, fan status, and operational parameters
Cooling System: 2 intelligent control fans (fan icon spins when temperature ≥33°C)
Terminals: Screw-tightened positive and negative connections
