Portable Solar Inverter 2000W Peak Power with Pure Sine Wave and 110VAC/220VAC Output for Home Use

Basic Properties
Place of Origin: China
Certification: CE,ROSH,FCC
Trading Properties
Minimum Order Quantity: 200set
Payment Terms: T/T
Supply Ability: 10000 set/month
Tags

hybrid solar inverter

solar panel inverter

home inverter system
Specifications
Peak Power: 2000W Continuous Power: 100W
Output Efficiency: ≥87% Output Voltage: 110 VAC/220 VAC
Output Frequency: 50 Hz/60 Hz Output Waveform:: Pure Sine Wave
THD: <3%
Product Description
Portable Solar Inverter with 2000W Peak Power for Home Use (Pure Sine Wave)

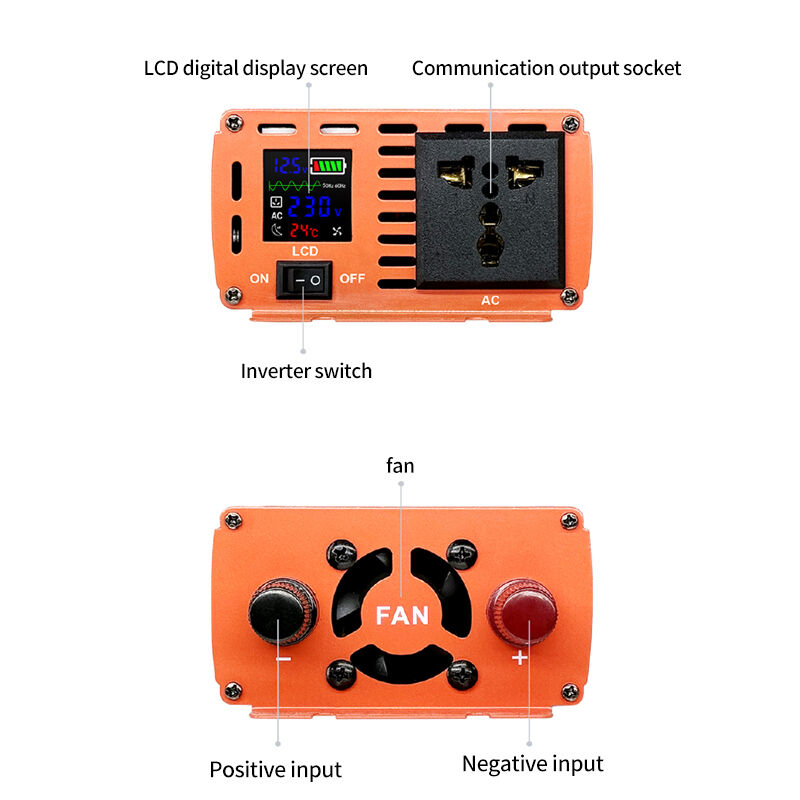

Portable Solar Inverter - Compact design with LCD display and AC output socket
Technical Specifications
Peak Power 2000W
Continuous Power 100W (resistive load)
Output Efficiency ≥87%
Output Voltage 110 VAC/220 VAC
Output Frequency 50 Hz/60 Hz
Output Waveform Pure Sine Wave
Total Harmonic Distortion (THD) <3% (Linear Load)
No-Load Current 0.72 A/0.45 A/0.22 A/0.19 A
Standby Power 8.7W/10.7W/10.8W/11.2W
Input Voltage 12Vdc; 24Vdc; 48Vdc; 60Vdc
Protection Features
  • Overload Protection: ≥1000W, Inverter Output Shutdown
  • Low-voltage Alarm: 9.5 Vdc; 20 Vdc; 39 Vdc; 54 Vdc
  • Low-voltage Protection Shutdown: 9 Vdc; 19 Vdc; 38 Vdc; 53 Vdc
  • Overvoltage Protection Shutdown: 16 Vdc; 30 Vdc; 60 Vdc; 72 Vdc
  • Over-temperature Protection: ≥70°C, inverter output shuts down
  • Short-circuit Protection: Available
Physical Specifications
AC Output Socket 1
Cooling Fan 1 (intelligent control; fan icon spins when temperature ≥33°C)
LCD Display 1 (displays battery voltage, charge level, AC voltage, AC frequency, unit error codes, fan status, and other parameters)
Positive and Negative Terminals Screw-tightened connections

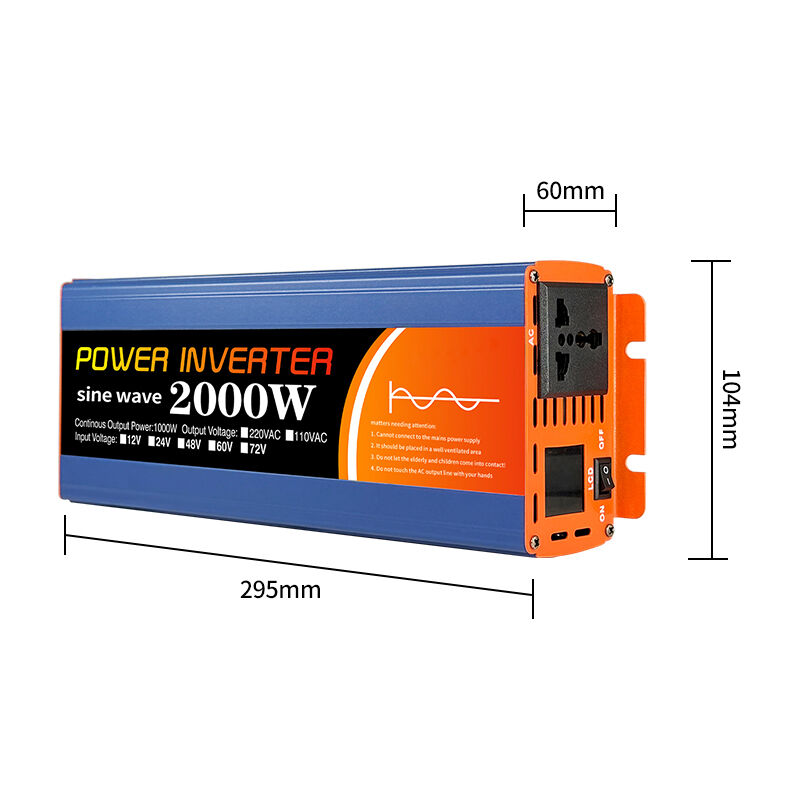

Product Dimensions 295 * 104 * 60 mm
Product Weight (Net) 1.15 kg
Packaging Dimensions 345 * 160 * 70 mm
Packaging Weight (Gross) ≈1.50 kg
Environmental Specifications
Operating Temperature -20°C to 60°C
Operating Humidity 10% to 90% RH (non-condensing)
Storage Temperature -40°C to 70°C
Storage Humidity 10% to 95% RH (non-condensing)
Operating Altitude ≤3000 m (Derated operation above 1000 m)
Note: Derated operation applies above 1000 meters altitude
