Portable 3000W Peak Power Solar Inverter with Pure Sine Wave Output for Lithium-Ion Battery Systems

Basic Properties
Place of Origin: China
Certification: CE,ROSH,FCC
Trading Properties
Minimum Order Quantity: 200set
Payment Terms: T/T
Supply Ability: 10000 set/month
Tags

hybrid solar inverter

solar panel inverter

home inverter system
Specifications
Peak Power: 3000W Continuous Power: 1500W
No-Load Current: 0.75 A/0.33 A/0.26 A/0.25 A Standby Power: 9W/7.9W/12.4W/15.1W
Overload Protection: ≥1500W, Inverter Output Shutdown Input Voltage: 12Vdc; 24Vdc; 48Vdc; 60Vdc
Input Voltage Range: 9.5~15.5Vdc; 19~30Vdc; 38~58Vdc; 53–70 Vdc
Product Description
Portable Solar Sine Wave Inverter with 3000W Peak Power
High-performance portable inverter designed for home use, compatible with lithium-ion battery storage systems. Ideal for reliable power conversion in residential applications.
Power Specifications
Peak Power3000W
Continuous Power (Resistive Load)1500W
Output Efficiency≥87%
Output Voltage110 VAC/220 VAC
Output Frequency50 Hz/60 Hz
Output WaveformPure Sine Wave
Total Harmonic Distortion (THD)<3% (Linear Load)
Input & Protection Features
Input Voltage12Vdc; 24Vdc; 48Vdc; 60Vdc
Input Voltage Range9.5~15.5Vdc; 19~30Vdc; 38~58Vdc; 53-70 Vdc
Low-voltage Alarm9.5 Vdc; 20 Vdc; 39 Vdc; 54 Vdc
Low-voltage Protection Shutdown9 Vdc; 19 Vdc; 38 Vdc; 53 Vdc
Overvoltage Protection Shutdown16 Vdc; 30 Vdc; 60 Vdc; 72 Vdc
Over-temperature Protection≥70°C, inverter output shuts down
Short-circuit ProtectionAvailable
Overload Protection≥1500W, Inverter Output Shutdown
No-Load Current0.75 A/0.33 A/0.26 A/0.25 A
Standby Power9W/7.9W/12.4W/15.1W
Physical & Operational Features
AC Output Socket1
CommunicationRS-485
Cooling Fan1 (intelligent control; fan icon spins when temperature ≥33°C)
LCD DisplayDisplays battery voltage, charge level, AC voltage, AC frequency, unit error codes, fan status, and other parameters
Positive and Negative TerminalsScrew-tightened connections
Operating Environment-20°C to 60°C, 10% to 90% RH (non-condensing)
Storage Environment-40°C to 70°C, 10% to 95% RH (non-condensing)
Operating Altitude≤3000 m (Derated operation above 1000 m)

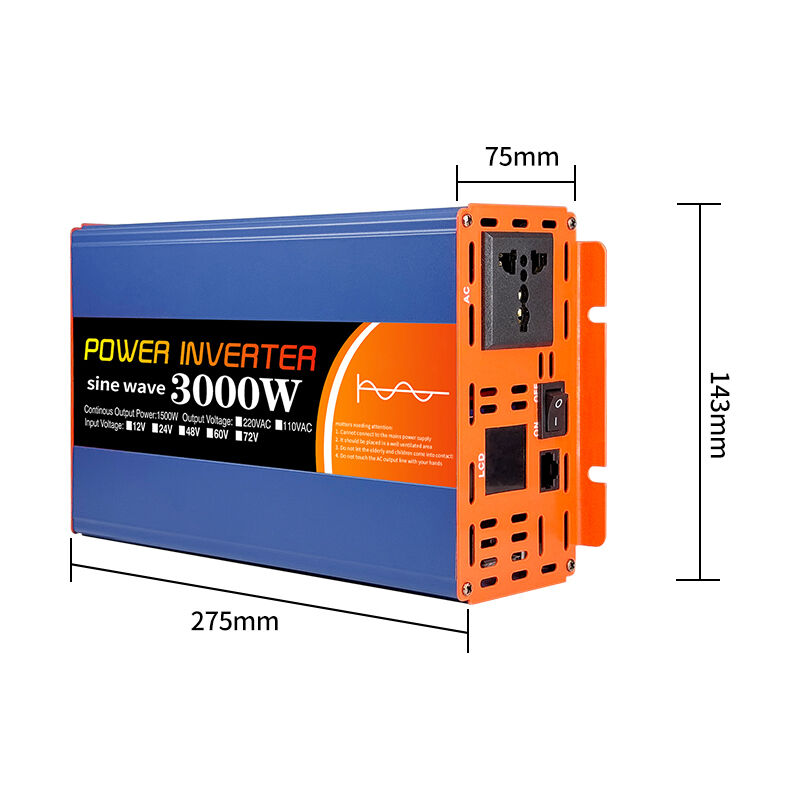

Product Dimensions275 * 143 * 75 mm
Product Weight (Net)1.75 kg
Packaging Dimensions330 * 205 * 145 mm
Packaging Weight (Gross)≈2.25 kg

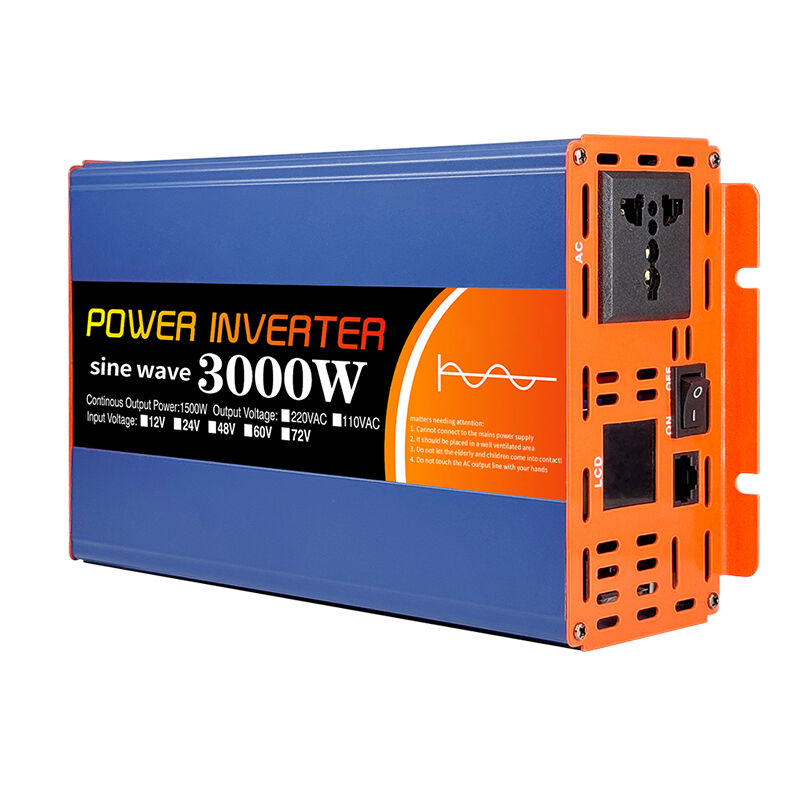

Portable Solar Sine Wave Inverter - Front view showing LCD display, controls, and output socket
