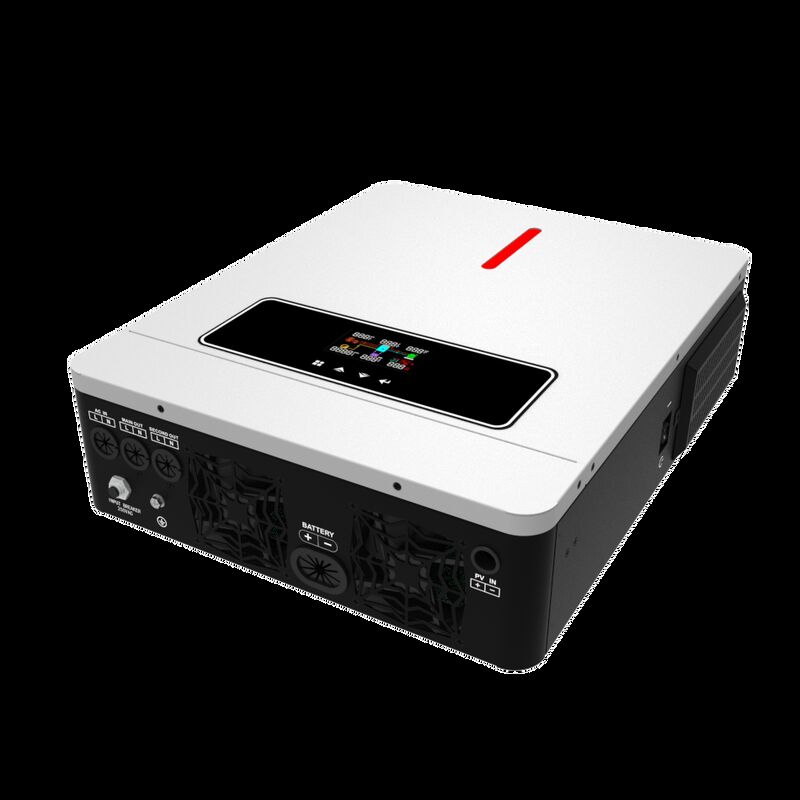

3600W Hybrid Solar Inverter With 120A MPPT Controller And 110v Pure Sine Wave Output
| Phase: | 1-phase | Maximum PV Input Power: | 6200W/6500W |
| Rated Output Power: | 3600W/3600VA | Maximum Solar Charging Current: | 120A/80A |
| Output frequency: | 50Hz/60Hz,50~60Hz,0~50/60Hz,50Hz (47~51.5Hz) / 60Hz (57~61.5Hz),0-400HZ | Weight: | 16.4KG,5-18KG,15KG,29kgs/pcs |
| Size: | 354*433*147mm | Application: | Home,Industrial,all Kinds Of 3 Phase Pumps,Commercial,Home And Car Using |
| Output voltage: | 110V/220V/230V/240V,220V/380V/480V,AC 230V/220V,12v,220V | Output type: | Single,Triple,Multiple,Dual |
| Output current: | Load,50/60A,13-320A,30A,30A-75A | Type: | DC/AC Inverters,DC To AC Inverters,Off-grid Solar Inverter,On Grid Solar System |
| Input voltage: | 12V/24V/48V,AC 230V/220V,36V DC,48VDC Or 96VDC,230VAC | Warranty: | 2 Years |
| Output power: | 1600w-5000w | Work time (h): | 24hours |
| Output voltage (v): | 110/120/220/230V,380/400/480V,15,220/380,12v | Load power (w): | 3000w,30,400W,0.6kw~70kw,Depends |
| Rated power: | 3000W,0.75kw To 450kw,3000W-5000W | Color: | Blue,Red,GREY/BLUE/YELLOW,red Gray Green,Red & Silver |
| Display: | LCD,LED | ||
| High Light: | 3600W Hybrid Solar Inverter,110v Hybrid Solar Inverter,3600W solar power inverters |
||
This multi-function inverter/charger combines inverter, solar charger, and battery charger capabilities to provide uninterruptible power support in a portable size. The comprehensive LCD display offers user-configurable operation for battery charging current, AC/solar charger priority, and input voltage settings.
- Pure sine wave inverter output
- Configurable input voltage range for appliances and computers via LCD
- Adjustable battery charging current based on application needs
- Configurable AC/solar charger priority via LCD
- Compatible with mains voltage or generator power
- Auto restart when AC power recovers
- Overload, over temperature, and short circuit protection
- Smart battery charger design for optimized performance
- Cold start function
The basic system requires a generator or utility connection along with PV modules. This inverter can power all types of home and office appliances, including motor-type devices like tube lights, fans, refrigerators, and air conditioners.
- LCD display
- Status indicator
- Charging indicator
- Fault indicator
- Function buttons
- Power on/off switch
- AC input
- Main output
- Second output
- Battery input
- PV input
- Antidust kit
- WIFI communication/RS-232 port
- Battery communication/RS-485 port
| INVERTER MODEL | 3.6KW | 4.2KW | 6.2KW |
|---|---|---|---|
| Input voltage waveform | Sinusoidal (utility or generator) | ||
| Nominal Input voltage | 230VAC | ||
| Low Loss voltage | 170VAC±7V (UPS); 90VAC±7V (Appliances) | ||
| Low Loss Return voltage | 180VAC±7V (UPS); 100VAC±7V (Appliances) | ||
| High Loss voltage | 280VAC±7V | ||
| High Loss Return voltage | 270VAC±7V | ||
| Max AC Input voltage | 300VAC | ||
| Nominal Input Frequency | 50HZ/60HZ (Auto detection) | ||
| Low Loss Frequency | 40±1HZ | ||
| Low Loss Return Frequency | 42±1HZ | ||
| High Loss Frequency | 65±1HZ | ||
| High Loss Return Frequency | 63±1HZ | ||
| Output short circuit protection | Circuit Breaker | ||
| Efficiency (Line Mode) | >95% (Rated R load, battery fully charged) | ||
| Transfer Time | 10ms typical (UPS); 20ms typical (Appliances) | ||
| INVERTER MODEL | 3.6KW | 4.2KW | 6.2KW |
|---|---|---|---|
| Rated output power | 3.6KW | 4.2KW | 6.2KW |
| Output voltage waveform | Pure sine wave | ||
| Output voltage Regulation | 230VAC±5% | ||
| Output Frequency | 50HZ | ||
| Peak Efficiency | 93% | ||
| Overload protection | 3s@≥150% load; 5s@100%-150% load | ||
| Surge capacity | 2× rated power for 5 seconds | ||
| Nominal DC Input voltage | 24VDC | 24VDC | 48VDC |
| Cold start voltage | 23.0VDC | 23.0VDC | 46.0VDC |
| Low DC warning voltage @ load < 50% | 22.0VDC | 22.0VDC | 44.0VDC |
| Low DC warning voltage @ load ≥ 50% | 21.0VDC | 21.0VDC | 42.0VDC |
| Low DC warning Return voltage @ load < 50% | 22.5VDC | 22.5VDC | 45.0VDC |
| Low DC warning Return voltage @ load ≥ 50% | 22.0VDC | 22.0VDC | 44.0VDC |
| Low DC cut-off voltage @ load < 50% | 20.5VDC | 20.5VDC | 41.0VDC |
| Low DC cut-off voltage @ load ≥ 50% | 20.0VDC | 20.0VDC | 40.0VDC |
| High DC Recovery voltage | 32VDC | 32VDC | 62VDC |
| High DC Cut-off voltage | 33VDC | 33VDC | 63VDC |
| No Load power consumption | 30W | 35W | 50W |
